Bipolar X-ray machines for industrial flaw detection series: Extravolt-450

Radiation Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Bipolar X-ray machines for industrial defectoscopy series: Extravolt-320. X-ray machines for industrial flaw detection bipolar series: Extravolt-350. Bipolar X-ray machines for industrial flaw detection: Extravolt-420 series.

Description

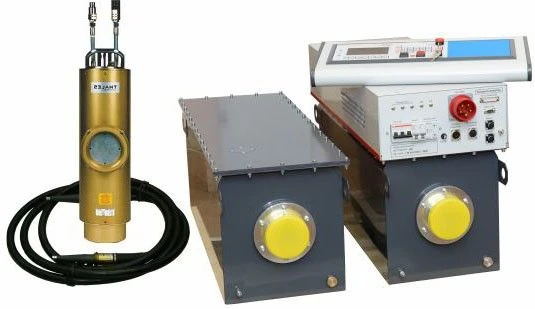

The X-ray devices for industrial defectoscopy bipolar series are stationary highly stabilised cable-type devices with constant potential on the X-ray tube, designed for inspection of industrial products by X-ray defectoscopy in industrial and scientific laboratories, as well as in workshop conditions. Its use with a small focal spot size makes it optimal in X-ray television systems for inspection of products with radiation thickness up to about 120 mm on steel. EXTRAVOLT industrial X-ray machines and metal-ceramic tubes are the ideal choice for stable operation. The high frequency technology used in the high voltage generators has been developed to meet the stringent requirements of modern industry. EXTRAVOLT units are ideal workhorses for both X-ray film radiography and real-time X-ray television applications.

Specifications

Operating voltage 5...450 kV

Input voltage 220/380 V

Load current 0-45 A

Type bipolar stationary highly stabilized cable-type device

Dimensions Transmitter 847x299; Console 580x275x106; 1040x355x530 cathode generator 1040x355x370 anode generator; cooling system 680x505x650

Output voltage 5000-450000 V

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Power consumption 8.5

Maximum output voltage 450 kV

Output voltage regulation range 5...450 kV

Maximum output current 0.05 A

Output current control range 0...0.05 A

Output voltage regulation step 10 kV

Output current control step 1.0E-5 A

Exposure time 0.1...480

Exposure time step 0.1

Exposure delay time 0...10

Exposure delay time step 0.1

Weight 450 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
