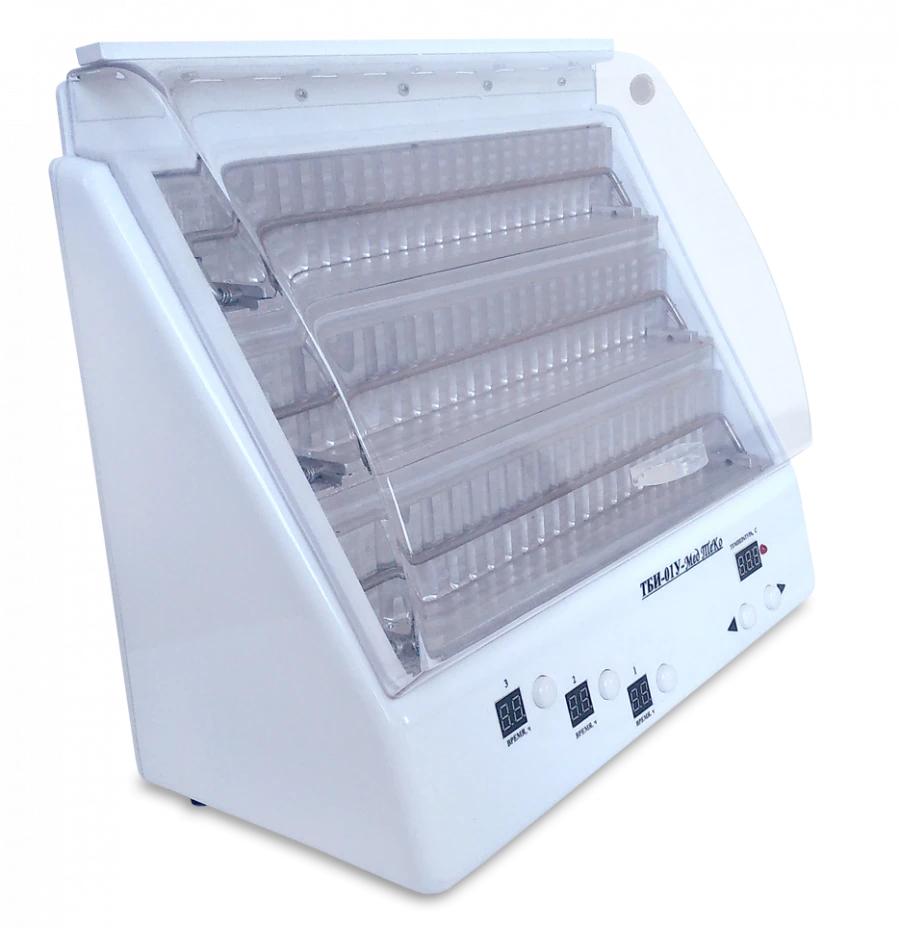

Biological Indicator Thermostat TBI-01 "Med TeKo" for Reliable Temperature Management

Thermostatic Devices

Manufacturer: MED TEKO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Thermostat for biological indicators TBI-01U - "Med TeCo" according to TU 26.51.70-040-56812193-2019

Description

The thermostat for biological indicators TBI-01-"Med TeCo" is designed to obtain and maintain a stable temperature inside test tubes with reaction mixture, necessary for bacteriological studies. The thermostat is used for thermostating biological indicators with thermostating temperature in the range from +35 oC to +60 oC. Areas of application of TBI - "Med TeCo": laboratories, sanitary and bacteriological services, CSO and other health care institutions.

Thermostat TBI 01 has two levels of indicators arrangement (17 cells on each level). Each level of the thermostat heating block has metal strips for fixing test tubes. Apparatus purpose: The thermostat for biological indicators TBI-01-"Med TeCo" is designed to obtain and maintain inside test tubes with reaction mixture stable temperature required for bacteriological studies.

The thermostat is designed for use in laboratories, sanitary and bacteriological services...

Specifications

Maximum deviation of the temperature in any of the tubes from the set value

-2...2 °C

Service life

5 year

Thermostat supply voltage

220 V

Thermostat power supply frequency

SBVVBG

Power consumption

150

Power cord, (length)

1.8 m

Thermostat weight

2.8 kg

Number of levels

2 pcs

Number of cells on each level

17 pcs

Temperature setting range

35...60 °C

Time to establish operating mode

Operating time of the thermostat in continuous mode

Timer setting range

0...99

Temperature of external parts of the thermostat during normal operation

60 oC - for external surfaces of the enclosure; 50 oC - for controls (knobs, buttons). 80 oC - for heating block. °C

Corrected sound power level from operating thermostat

Average MTBF

5000

Protection class against electric shock

I according to GOST IEC 61010-1

Overall dimensions Thermostat, (WxHxH)

231x296x129 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
