Bimetallic Thermometer TBf-222 IP54 160 RSH

Available for Import

Bimetallic Thermometer TBf-222 for Measuring Liquid and Gas Temperatures

Temperature Measurement Devices

Manufacturer: AO PO FIZTEKH OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

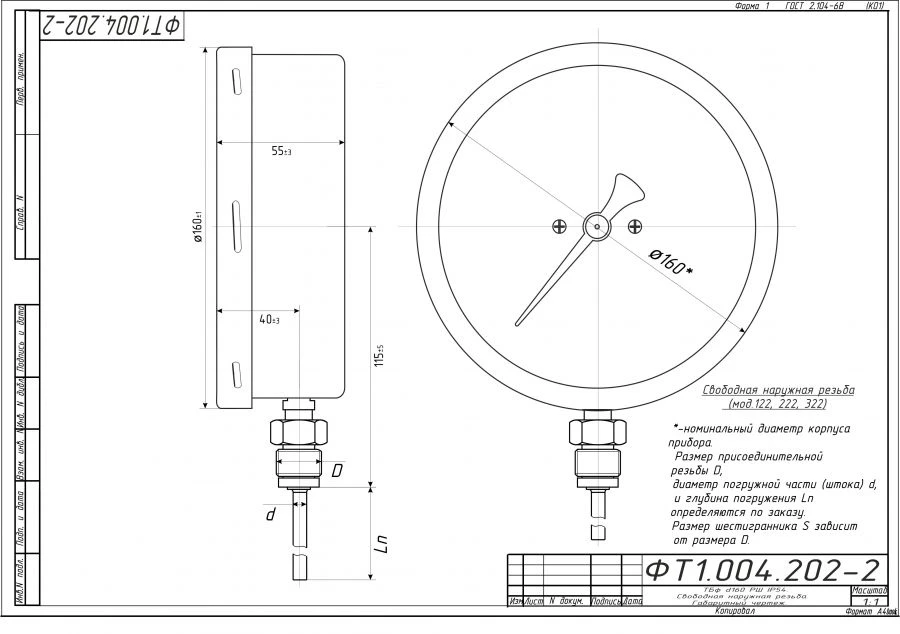

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk solids and solids. Thermometers are manufactured with radial (RS) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or on the body.

The design of the connection is free external thread. Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous for explosive gas environments in accordance with the assigned explosion protection marking.

Specifications

Body diameter

160 mm

Stem arrangement

radial

Availability of protective sleeves in the set

Armoured glass

Number of protective sleeves in the set

1 pcs

Measuring limit, max

600 °C

Measuring limit, min

-60 °C

Accuracy class

2.5

Length of immersion part

1 mm

Material of protective armature

Stainless steel

Insulation of the working end

airtight

Degree of protection

IP54

Type

TBf

Type of climatic version

UHL1

Unit designation

TBf-222 IP54 160 RSH

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
