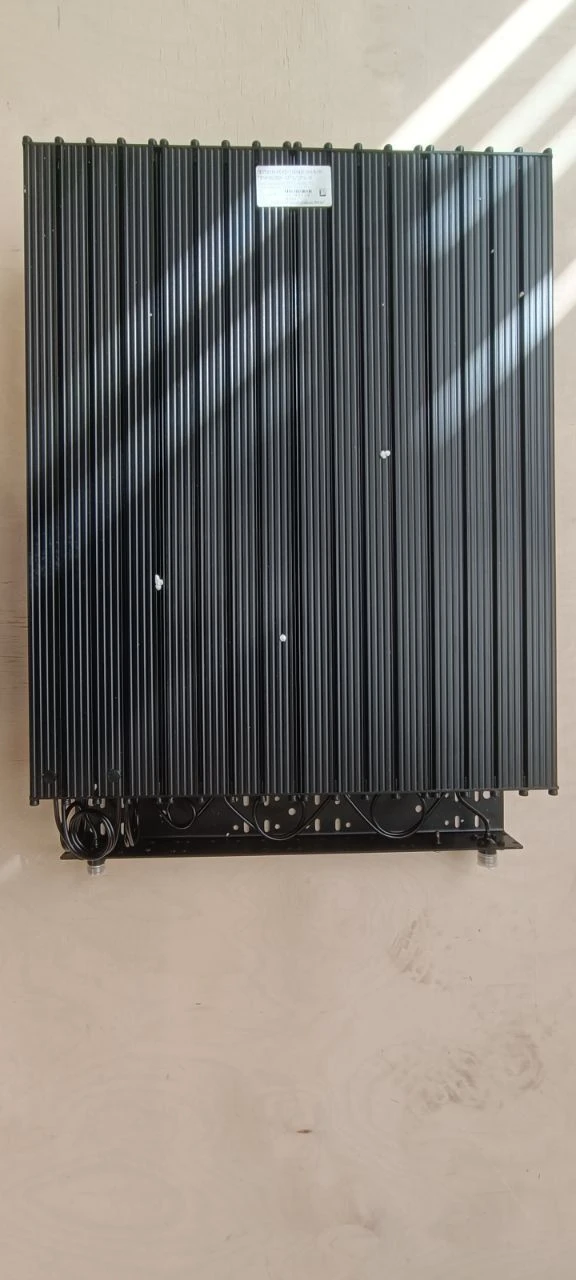

Bandpass-rejector filter PRF160NK-4P3/2P4-K

Broadcast Equipment Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Bandpass-rejector filter PRF160VK-4P3/2P4-K

Description

Band-rejector filter PRF160NK-4R3/2R4-K KD AVR.468849.037-01 is manufactured in accordance with the requirements of technical specifications ALVR.468849.037 , is designed for use in antenna-feeder paths of stationary and transportable (locomotive) receiving and transmitting devices in order to increase the selectivity of their receivers, to reduce the influence of out-of-band interference, to get rid of the effect of sensitivity reduction and blocking by RF signals from nearby radio transmitters, as well as to reduce the probability of intermodulation interference.

Specifications

Equipment Filter, passport, packaging

Output power 100 W

Type Полосно-режекторный фильтр

Rejection band 155.5...156

Bandwidth 155...155.275

Tuning frequency range 150...156

Maximum input power (continuous) 100 W

Direct losses at pass frequencies Not more than 6.0 dB

Wave impedance SBVVBG ohm

VSWR Not more than 1.5

Connector type Two N-type sockets

Operating temperature range From -40 to +60 degrees Celsius

Dimensions (LxWxH) 599x403x108 mm

Weight 10 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
