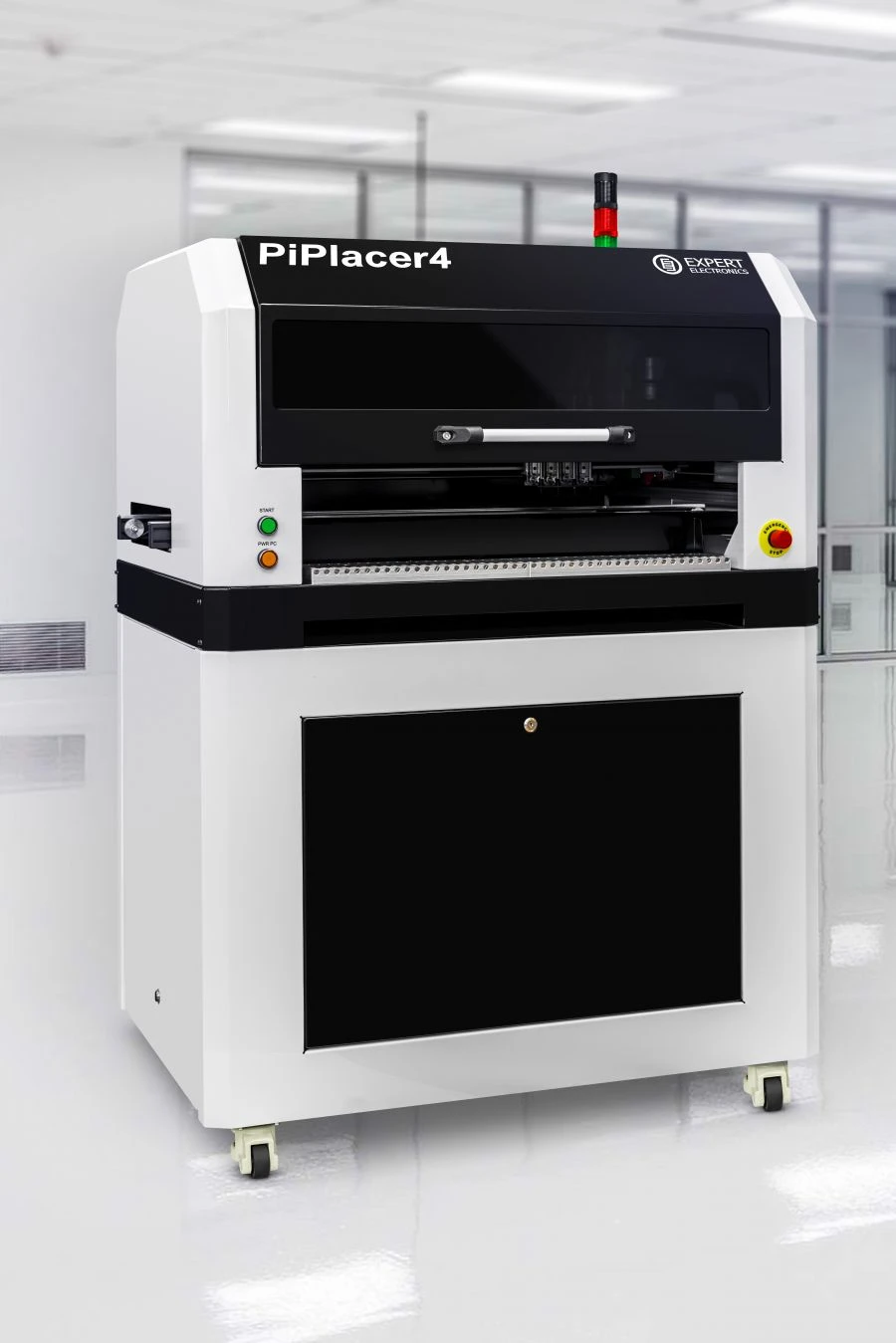

Automatic SMD components installer "PiPlacer4"

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Designed for mounting various types of SMD-components on the surface of printed circuit boards for pilot, small and medium series production of electronics.

Technical Specifications

Voltage	220...240 V
Weight, not more	195 kg
Service life, at least	5 a
Execution	Stationary
Minimum component size	Size 0201
Function for overpressurising the nozzle	Got it
Vacuum (component pickup) control	Got it
Interfaces	USB 2.0 (3 ports); HDMI (1 port);Gigabit Ethernet (1 port); SMEMA (1 port).
Vibratory feeder for pencils	Number of cases of different widths - up to 18 pcs.
Working with component placings	Armoured glass
Working with ribbon scraps	44 mm
Matrix trays	JEDEC 5.35 "x12.44" (136x316 mm) ¼ size trays (up to 4 pcs.)
Belt auto feeders	44 mm
Type of auto feeders	pneumatic
Maximum component height	B1/B8 2100/900 MHz mm
Maximum component size	40x40 mm
Maximum width of the board	235 mm
Minimum width of the board	SBVVBG mm
Maximum board thickness	4.7 mm
Minimum board thickness	0.3 mm
Single zone pipeline with SMEMA support	955...965 mm
Performance	4000 components per hour with recognition
Angular accuracy of installation	0.15 °C
Number of machine vision cameras	6 pc
Independent mounting heads with programmable mounting height	4 pc
Software	Own, under Linux OS
Required compressed air pressure	0.6...0.8 MPa
Pneumatic power supply, consumption.	60 nl/min
Dimensions (DxWxH), mm	1120x770x1580
Instrument power supply type	??????????????
Operating temperature	18...25 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
