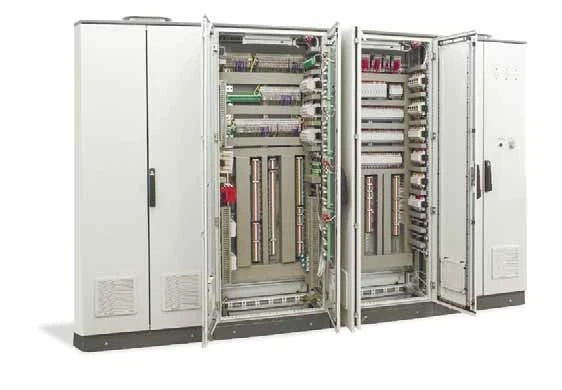

System of automatic control of gas pumping unit "Neman-R-12" on the basis of Russian software and hardware "

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Neman-R-12 GPA ACS (hereinafter referred to as ACS or system), implemented on the basis of software and hardware complex (PTC) "Neman-R" (TU 4252-013-00159093-2015), on controllers "TREI-5B-05", "TREI-5B-04" of the Russian manufacturer JSC "TREI" and software "Alfa Platform" of the Russian developer JSC "Atomik Soft", is designed to fulfil the full scope of functions of automatic control, regulation, monitoring and protection of gas compressor units and to ensure trouble-free long-term operation. The automatic control system can be used during new construction, reconstruction or overhaul of linear and booster compressor stations, gas cooling stations. A set of material parts (KMP) for repair of existing GPA ACS can be developed on the basis of ACS. Manufacturing of GPA ACS is carried out taking into account the initial technical requirements of manufacturers of various types of GPAs, located both in individual shelters and in the general building of the compressor shop, including GPAs of modular designs.

Technical Specifications

Voltage	24 V
Service life, at least	15 a
DC voltage measurement ranges (channels 1-3)	24 V
Input impedance, not less (by channels: channel 1, limit ±100; channel 1, limits ±1 V and ±10 V; channel 2, all limits; channel	1 ohm
Limits of permissible basic absolute error of measurements	0,2
Installable non-volatile memory capacity, not less than	128
Instrument power supply type	Power supply parameters (determined in accordance with the technical specification for the system): ? 220 V AC with 50 Hz frequency; ? 220 V DC; ? 110 V DC; ? 24 V DC.
PC communication interface	Standard interfaces and protocols are used for communication with external devices in accordance with the technical task for system development.
Operating temperature	5...50 °C
Degree of protection against external influences	IP22
DC voltage measurement ranges (channels 1-3)	0.02 V
Limits of permissible basic absolute error of measurements	0.1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
