Automatic road weather station INEI

Weather and Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

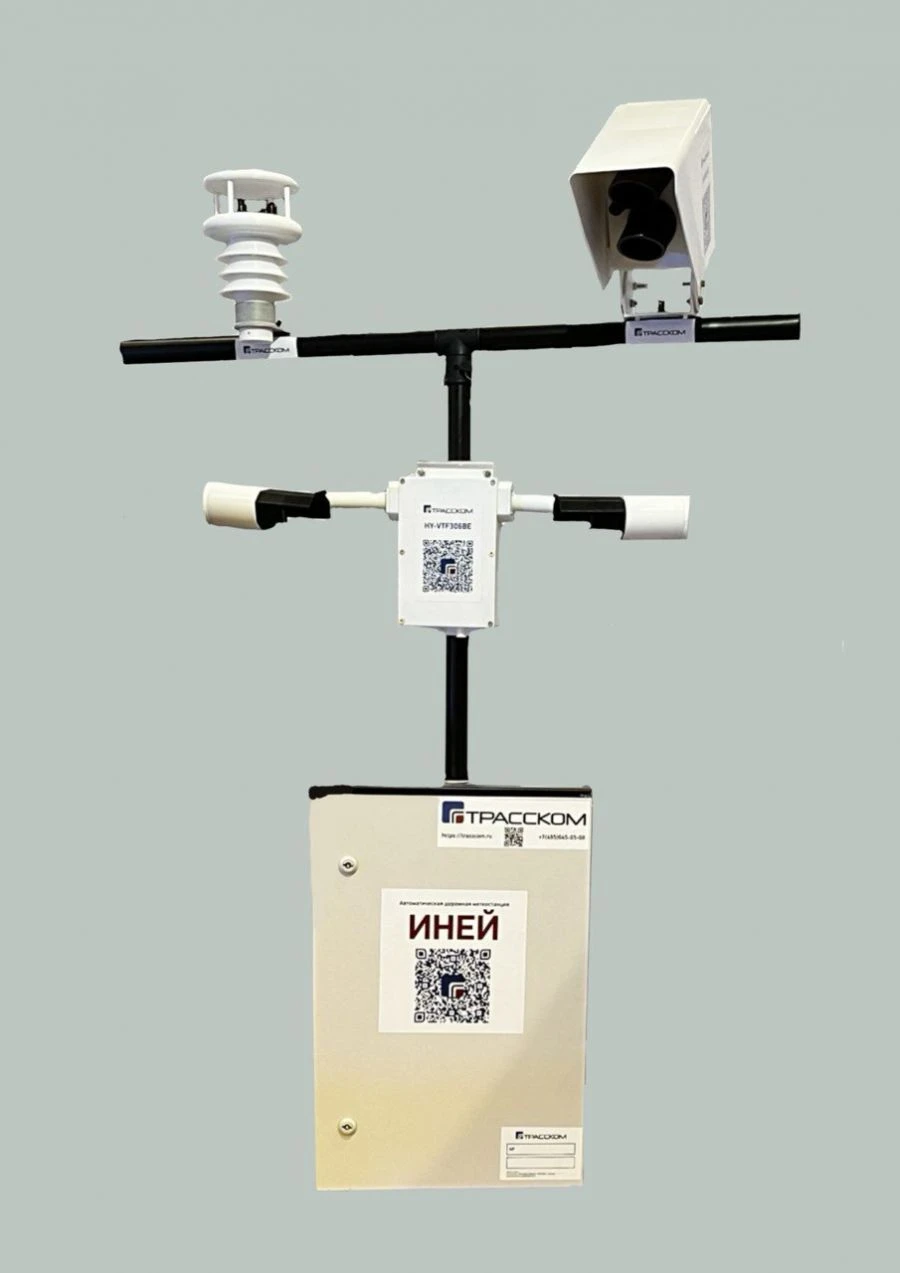

Automatic road meteorological station INEY is designed for automatic measurements of meteorological parameters: air temperature, roadbed temperature, ground temperature, relative humidity, speed and direction of air flow, atmospheric pressure, thickness of water layer, snow, ice on the road surface, meteorological optical range, amount and intensity of precipitation, as well as for local collection, processing and transmission of monitoring parameters to external users.
Automatic road meteorological station INEI is able to analyse the condition of the road surface to determine the amount and concentration of anti-icing agent, the amount of snow, water or moisture on the surface and the freezing temperature, as well as to warn about the presence of ice, snow and precipitation.

Specifications

Atmospheric pressure measuring range 26-126

Absolute error tolerance limits of atmospheric pressure measurements ± 0.03

Measuring range of air temperature -60 to +85 °C

Limits of permissible absolute error of air temperature measurements in the range from -60 ºC to +20 ºC on: ±(0.17-0.0028?t); in the range from +20 ºC to +85 ºC: ±(0.07+0.0025?t), where t is the measured temperature value without taking into account the sign. °C

Ground Temperature Measurement Range -50 to +60 °C

Limits of permissible absolute error of ground temperature measurements ±0,2 °C

Measuring range of road surface temperature -50 to +80 °C

Limits of permissible absolute error of road surface temperature measurements in the measuring range from -50 ºC to -15 ºC inclusive: ±0.7; in the measuring range from -15 ºC to +80 ºC: ±0.2 °C

Road surface temperature measurement range at a depth of 5 cm -50 to +80 °C

Limits of permissible absolute error of road surface temperature measurements at a depth of 5 cm in the measuring range from -50 ºC to -15 ºC inclusive: ±0.7; in the measuring range from -15 ºC to +80 ºC: ±0.2 °C

Measuring range of road surface temperature -50 to +70 °C

Limits of permissible absolute error of road surface temperature measurements in the range from -50 ºC to 0 ºC inclusive: ±(0,8-0,05?t); in the range from 0 ºC to +70 ºC: ±(0,8+0,08?t), where t is the measured temperature value without taking into account the sign. °C

Water, snow, ice layer thickness measurement range For water: 1 to 10; For snow: 1 to 20; For ice: 1 to 10 mm

Limits of permissible absolute error of water, snow, ice layer thickness measurements ±0,4 mm

Measurement range of Water layer thickness 0.5 to 3 mm

Limits of permissible absolute error of water layer thickness measurements ±0,5 mm

Measuring range of relative air humidity From 1 to 100 %

Absolute error tolerance limits of relative humidity measurements in the range of temperature from -40 to +55 ? in the measuring range from 1 % to 90 % inclusive: ±2; in the measuring range from 90 % to 100 %: ±3 %

Measuring range of meteorological optical range 10 to 10000 m

Limits of permissible relative error of measurements of meteorological optical range ±10 m

Measurement range of air velocity 0,5 to 60

Limits of permissible absolute error of air velocity measurements In the range from 0.5 m/s to 5 m/s incl.: ±0.5

Limits of permissible relative error of air velocity measurements In the range from 5 m/s to 60 m/s: ±10 %

Measuring range of air flow direction 0º to 360º

Limits of permissible absolute error of airflow direction measurements ±2º

Minimum measurable amount of precipitation 0,1 mm

Limits of permissible absolute error of measurements of atmospheric precipitation quantity ±(0.1 + 0.05-X), where X is the measured value of the amount of precipitation mm

Measuring range of atmospheric precipitation intensity 0.2 to 200 mm/h.

Limits of permissible absolute error of measurements of atmospheric precipitation intensity ±(0,2+0,05-I), where I is the measured value of intensity of atmospheric precipitation, mm/hour

Electrical power supply from AC source 220±22 V

Electrical power supply from DC source 12 to 14 V

Communication interfaces USB, GSM, LAN SDI-12, RS-485, RS-232

Average service life 10 years

Weight, not more 50,5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
