Automated Equipment Complex "Reka-M" for Robotic Welding of Atomic Icebreakers
Manufacturer:
CTSS OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

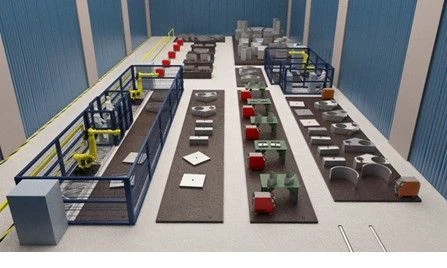

Reka-M complex of automated equipment for manufacturing of protection blocks for nuclear icebreakers and floating nuclear power plants.
The complex is designed for robotised arc welding and robotised removal of weld reinforcements (stripping) during the manufacture of biological protection units for nuclear icebreakers and floating nuclear power plants.
The complex is designed for robotised arc welding and robotised removal of weld reinforcements (stripping) during the manufacture of biological protection units for nuclear icebreakers and floating nuclear power plants.
Specifications
Type of product according to PP RF 616
Electrical machines and equipment for soldering with soft and hard solder and welding
Minimum welding current
5 A
Operating voltage
380 V
Power
27 kW
Sweep speed
24
Designation
"river-m"
Mains voltage
380 V
Name
complex
Assignment
for the manufacture of protection units for nuclear icebreakers and floating nuclear power plants (robotised arc welding and robotised seam stripping (stripping) in the manufacture of biological protection units for nuclear icebreakers and floating nuclear
Maximum power consumption
102 kW
Permissible dimensions of workpieces
Up to 3000x1200x1000 mm
Air pressure
6
Maximum power consumption, kW
27
Operating modes (continuous/pulse)
continuous/pulsed
Maximum welding current
500 A
Type of welding current
permanent
Automatic welding
Armoured glass
Semi-automatic welding
no
argon-arc welding
Armoured glass
Manual arc welding
no
Contact welding
no
AC mains supply voltage
380 V
Mains frequency
SBVVBG
Type of welding voltage regulation
automated
Load Duration (LL)
100 %
Type
Complex of automated equipment
Mark
Reka-M
Dimensions
4100*1000*200 mm
Weight
3000 kg
Accuracy
0.08 mm
Type of stripping
milling (without soot)
Type
automated equipment
Welding speed
30
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
