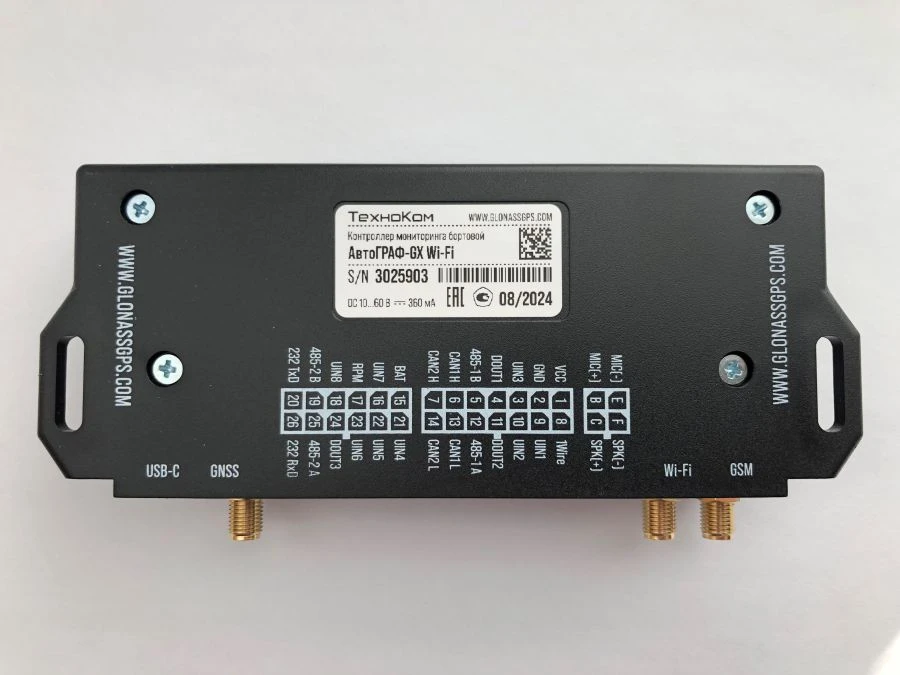

AutoGRAF-GX Wi-Fi Onboard Monitoring Controller for Real-Time Tracking

Autograf-GX Wi-Fi on-board monitoring controller is a compact electronic recorder that records all movements of the monitoring object by recording time and route in the form of points with geographical coordinates received from satellites of global navigation systems. In addition to recording coordinates, a number of other controller parameters are recorded: speed, direction of movement, events, states of discrete controller inputs, external sensors, data buses, etc. Accumulated data are transmitted via GSM 850 / 900 /1800 / 1900 cellular operator network via GPRS packet data transfer technology to a dedicated server, from which they can be received via Internet for further analysis and processing by dispatching software. Also the controller of modification Autograf-GX Wi-Fi supports data transfer via Wi-Fi network. The presence of two channels allows to solve the problem of data transmission to the server, if one of the channels is unavailable.
