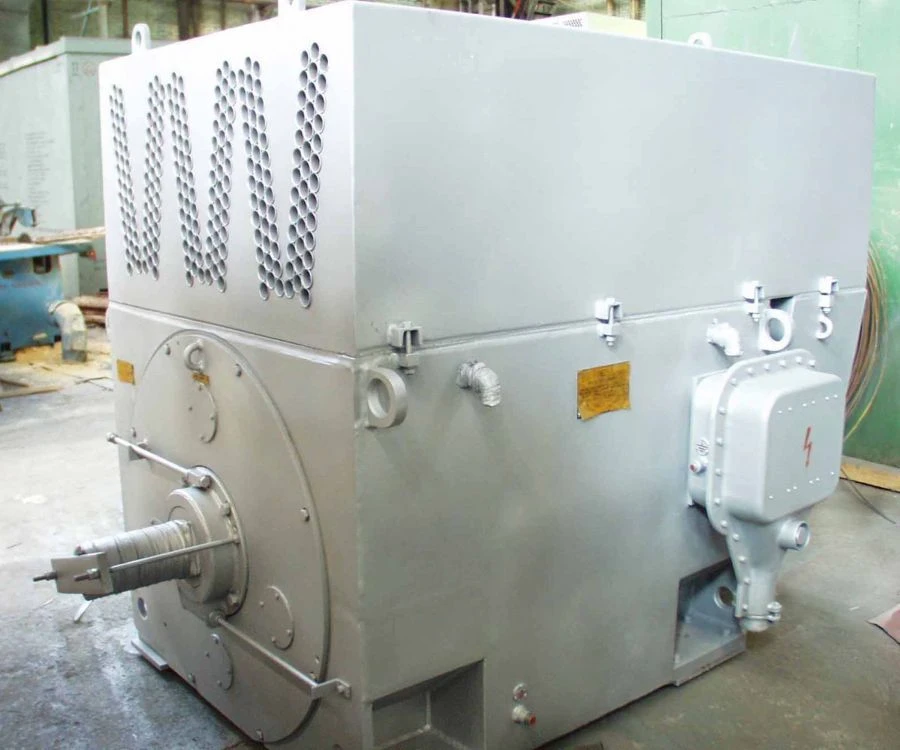

Three-phase asynchronous electric motor with squirrel cage rotor 2ADOT-250-6000-8U1M

Electric motor three-phase asynchronous with squirrel cage rotor 2ADOT-250-6000-8U1M general industrial version, designed to drive various mechanisms: mills, crushers, pumps, etc. The main standard for the product is GOST IEC 60034-1-2014. Structural design - IM1001. The electric motor has shielded plain bearings with forced lubrication system. Stator winding insulation is made on thermosetting binders with heat resistance class "F" GOST 8865-93 with temperature use at the level of class "B". The cooling method is IC6A1A1. The electric motor is designed for operation in the environment, the nominal value of climatic factors of which correspond to the macroclimatic region with moderate climate of placement category 1 according to GOST 15150-69. The direction of rotation is both right and left. The direction of rotation can be changed from the resting state by switching the phase alternation. Re-installation of fan blades is not required.
