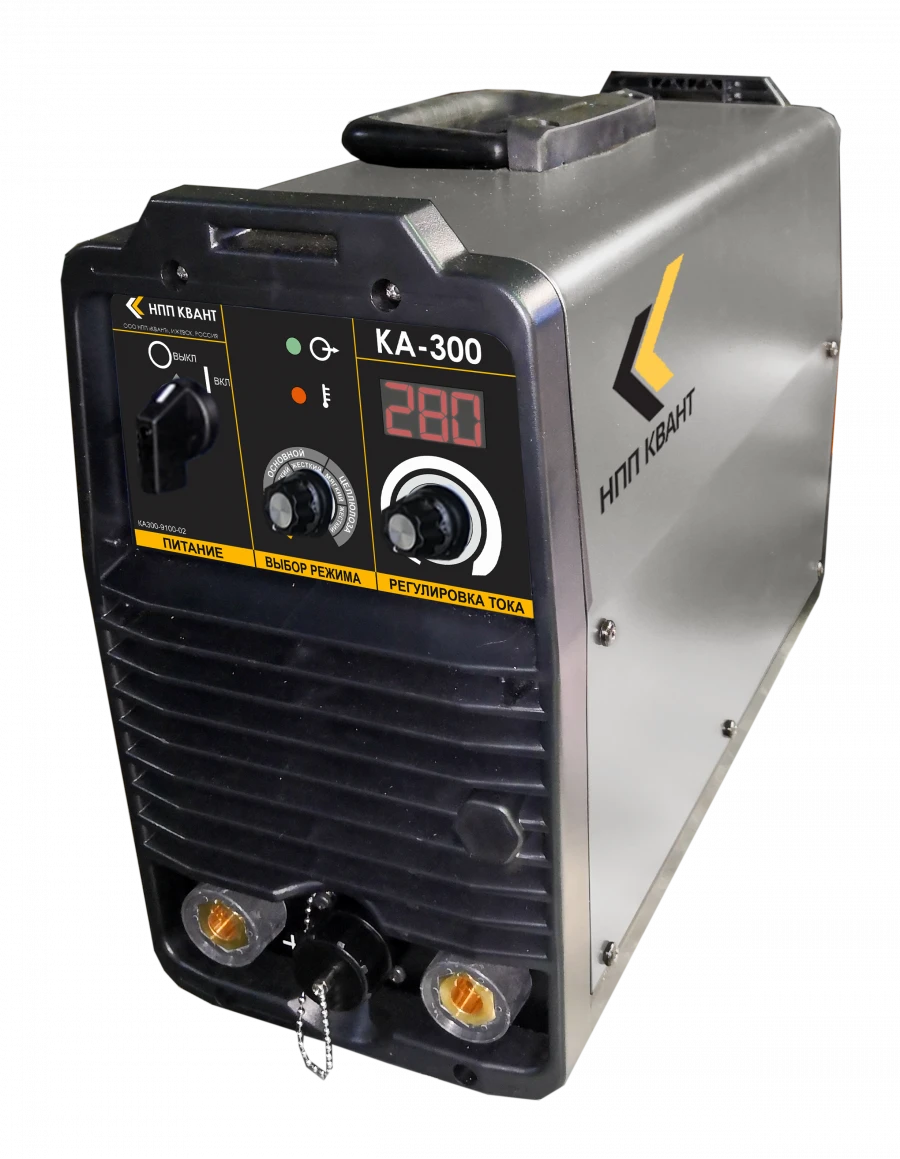

KA-300 Arc Welding Inverter Rectifier for Efficient Steel Welding
Manufacturer:
Kvant LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The inverter arc welding rectifier KA-300 is designed:
-for manual arc welding (MA) of steels on direct current by electrodes with basic and cellulose coated electrodes with diameter 2-5 mm;
-for welding with non-melting electrode in argon RAG (TIG)/.
To create safe working conditions when carrying out welding works in the RD mode, the inverter has a built-in idle voltage reduction device (VSR).
-for manual arc welding (MA) of steels on direct current by electrodes with basic and cellulose coated electrodes with diameter 2-5 mm;
-for welding with non-melting electrode in argon RAG (TIG)/.
To create safe working conditions when carrying out welding works in the RD mode, the inverter has a built-in idle voltage reduction device (VSR).
Specifications
Type of product according to PP RF 616
Arc welding equipment
Power
16 kW
Rated welding current
300 A
Operating voltage
31.2 V
Minimum welding current
30 A
Welding current adjustment range
30...300 A
Service life
5 year
EFFICIENCY
80 %
Insulation class
F
Protection class
IP23
Current consumption
25 A
Switching modes
soft; hard
Magnetic current compensation mode
Armoured glass
Manual argon-arc welding with a non-melting electrode
Armoured glass
Weight
20.6 kg
Dimensions
557x191x343 mm
Mark
KA-300
Type
inverter
Equipment
Arc welding rectifier KA-300, 1 piece; operating documents, 1 set; spare, replacement parts and accessories, 1 set.
Load Duration (LL)
100 %
Type of welding voltage regulation
smooth
Mains frequency
60
AC mains supply voltage
380 V
Contact welding
no
Manual arc welding
Armoured glass
argon-arc welding
Armoured glass
Semi-automatic welding
no
Automatic welding
no
Frequency of supply voltage
60
Type of welding current
permanent
Maximum welding current
300 A
No-load voltage
67 V
Height
343 mm
Width
191 mm
Length
557 mm
Operating modes (continuous/pulse)
continuous
Maximum power consumption, kW
16
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
