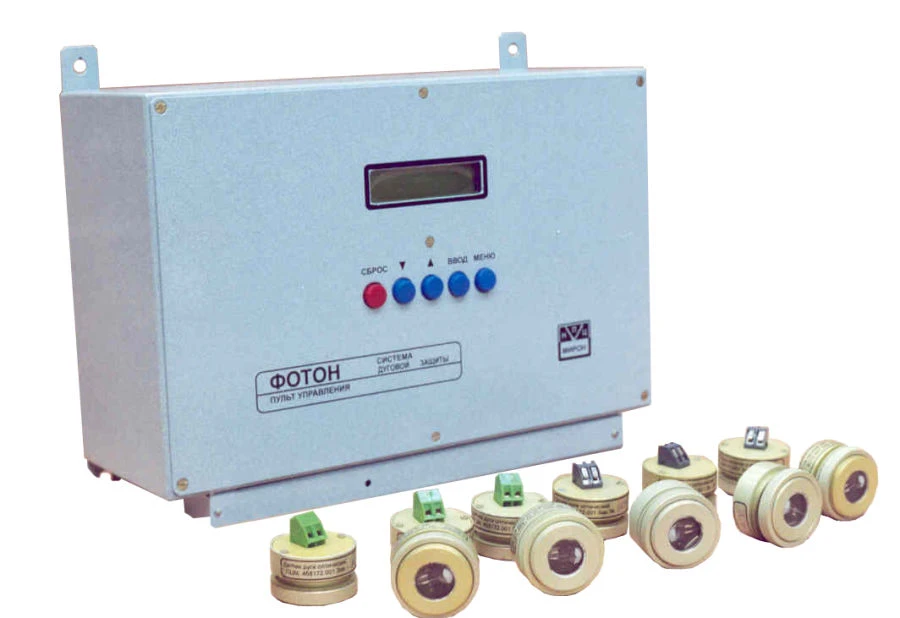

Arc Protection System PHOTON for Quick Disconnection in 3-10 kV Circuits

Automatic Control Devices

Manufacturer: MIRONOMIKA LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The system of arc protection "PHOTON" is designed for quick issuance of commands to disconnect switching elements of power electric circuits with voltage 3, 6 and 10 kV in case of occurrence of an open electric arc of short circuit inside switchgear cells.

Specifications

Composition

Control panel, arc sensors up to 50 pcs.

Number of channels

2 pcs

Power supply voltage

220 V

Angle of view of optical sensor, not less than

Maximum distance of the sensor from the control panel , not less than

30 m

Working distance to the transmitter

0.2...5 m

Current consumed from the remote control, not more

4 mA

Overall dimensions of the sensor, not more than

Diameter 36*33mm

Control range of reaction time to input signal

0.2...5

Value of current setting values

<500% In with 1%In sampling (In=5A)

Voltage at the switch actuator actuation store

400 +- 10 ?

Storage capacity

220 µF

Time of functioning at loss of operational current, not less than

Duration of actuators control pulse, not less than

1000

Power supply voltage

=180320 V, 130...242 V, 50 Hz

Self test cycle

1...24

Overall dimensions of the control panel, not more than

300*230*110 mm

Weight , not more

5 kg

Reaction time to arc faults, not more

Volume of event log

65000

Number of emergency recorder records

3 records

Warranty period

3 year

Optical arc sensor, number of sensors on one line, up to

SBVVBG pcs

Control panel

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
