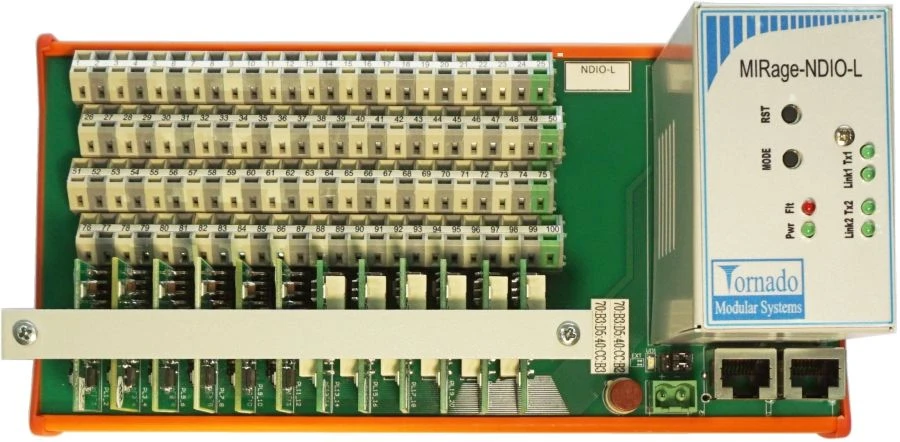

Discrete Input/Output Device 12 Signals 24V AC/DC Model MIRage-NDIO-L

Available for Import

Discrete Input/Output Device 12 Signals 24V AC/DC - Ideal for Distributed Systems

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NDIO-L devices are designed for input and/or output of discrete signals of low voltages (up to 50 V) when building distributed information and control systems. Reading of states of signals of discrete inputs and issuing of control commands to discrete outputs is performed via duplicated digital interface Ethernet 10/100 over twisted pair using ModBus protocol. MIRage-NDIO-L devices have 24 discrete channels (DCs).

The DCs, in groups of two, can be configured by direction: to be input (DI) or output (DO) DCs. The direction types of the DCs are determined by the software configuration of the device and the installation of the appropriate types of removable matching modules. There are modules for matching digital inputs and modules for matching relay digital outputs.

DCs have galvanic isolation from each other and from the system part.MIRage-NDIO-L devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Number of discrete I/O channels

24 pcs

Type of output signals

Switched relay contacts

External supply voltage (+/- 15%)

24 V

Consumption current, max.

80 mA (not including current consumption of submodules)

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Weight, not more

800 year

Overall dimensions

216x108x111 mm

Galvanic insulation

Individual

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

Interface type

Ethernet 10/100BaseTX - 2 channels

Mechanical design

DIN rail mounting

Request response time at 100 Mbit network speed, no more than

Maximum current consumption

353 mA

Type of input signals

24 V (AC/DC)

Levels of discrete output signals

0-50V (AC/DC)

Levels of discrete input signals

0-36 V (AC/DC)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
