Anodic earth electrode AZ.SK.FS-GB-1500

Low-Voltage Electrical Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Anodic ferrosilide surface earthing switch complete AZ.SK.FS-PK Anodic earth electrode AZ.SK.FS - PK-1510 Anodic earthing electrode AZ.SK.FS - P-1455 Anodic ferrosilide surface earthing switch AZ.SK.FS-P Anodic earthing electrode AZ.SK.FS - P-1500

Description

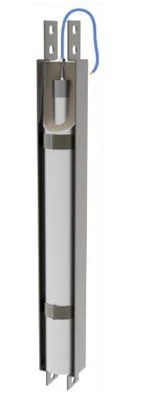

Anodic earthing electrode based on ferrosilide, deep block, electrode length 1500 mm

Specifications

Nominal mass of the electrode (working element) 32 kg

Electrode length (working element) 1500 mm

Active surface area of the earthing electrode 0.3028

Rated current load on the earthing switch 2.3 A

Maximum current load on the earth electrode 5.7 A

Climatic version -40- +60

Housing material Electrically conductive sheet material

Material of manufacture ferrosilide (CS-15)

Color dark gray

Mark AZ.F.S.C.

Equipment - electrode (working element); - contact unit; - current supply cable.

Assignment are designed for use as low-soluble elements of anode earth electrodes, which make contact of the positive pole of the converter of the cathodic protection unit with the ground and ensure the flow of protective current into the ground.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
