Analogue input device. 8 unified current signals, group galvanic isolation, special version (MIRage-NAI-R-A).

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Analogue input device. 8 unified voltage signals, group galvanic isolation, sensor power supply, spec. Analogue input device. 8 unified current signals, group galvanic isolation, power supply of sensors, spec.

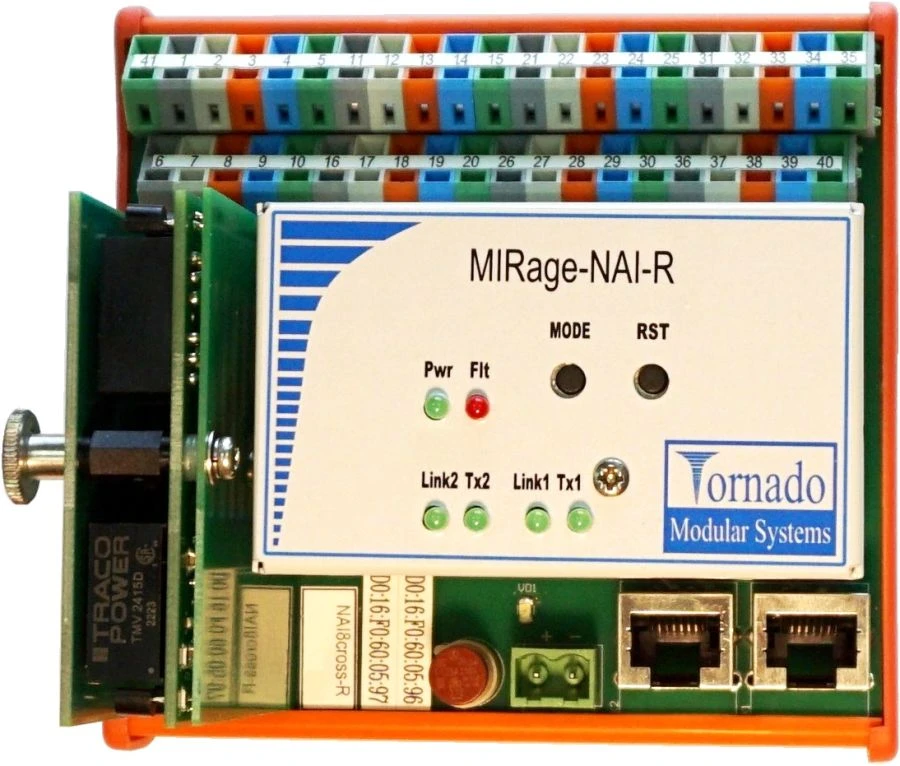

The MIRage-NAI-R-A devices are designed to input analogue DC signals from sensors with active current output and convert them into digital form when building distributed information and control systems. The devices are designed for measurement of unified current values and transmission of measured values over twisted pair via redundant Ethernet 10/100 twisted pair interface using ModBus protocol. The MIRage-NAI-R-A instruments have 8 differential input measurement channels (IR). MIRage-NAI-R-A devices are designed to create automated process control systems (APCS) in various industries.

Technical Specifications

Consumption current min (all sensors are active), max.	130 mA
Operating temperature range	-25...70 °C
Wago terminal block, conductor cross-section up to	2.5 mm2
Mechanical design	DIN rail mounting
Weight, not more	600 g
Overall dimensions	114x108x111 mm
Galvanic insulation	Group
Consumption current without taking into account sensors, max.	105 mA
External supply voltage (+/- 15%)	24 V
Data exchange protocol	Modbus TCP/UDP slave
Data transfer rate	10
Request response time at 100 Mbit network speed, no more than	2
Interface type	Ethernet 10/100BaseTX - 2 channels
Number of measuring channels	8 pc
Current consumption max (all sensors are passive and in maximum consumption), not more than	490 mA

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
