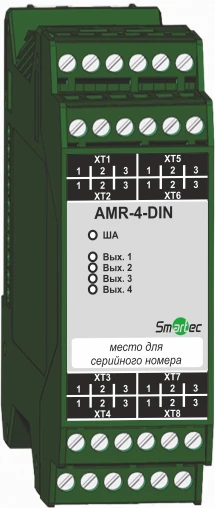

AMR-4-DIN Addressable Module for Fire Alarm Control and Management

Block (module) output series AMR-4 (hereinafter - the module), which is part of the device receiving and controlling alarm and fire control addressable "Vesta 01F",
is designed for: control of executive devices; control of fire detectors (security sensors), in terms of reset function (voltage supply to the corresponding input); formation of signals ("Fire", "Start" and "Failure") to notification transmission systems and other systems involved in fire safety; formation of signals "Alarm" in alarm systems; formation of the starting signal "Start" to fire control devices. AMR-4-DIN - plastic high-profile housing on a Din-rail; The module provides control of the integrity of the output bezadressnyh communication lines (short circuit and open circuit) with executive devices and fire detectors (security detectors).
