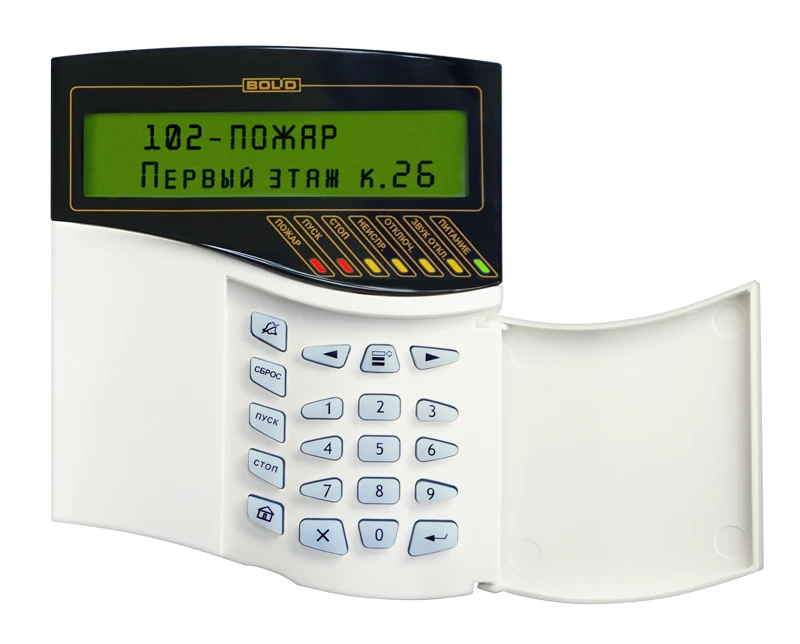

Security and Fire Control Panel "C2000M" for Enhanced Safety and Automation

Security and Fire Control Devices

Manufacturer: BOLID CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for operation as a part of the addressable system of intrusion and fire alarm systems and fire-prevention automatics. Together with the devices ISO "Orion" it can perform the functions of a block-modular device receiving and monitoring security and fire, fire control device light, sound and voice alarms, smoke protection, gas, powder aerosol and water fire extinguishing, building engineering systems, including systems involved in fire safety. Information interaction of the units is carried out via RS-485 wired communication line. The functions of the device can be expanded by connection of additional units

Specifications

Average current consumption in standby mode (with key backlight disabled and without sound and light signaling)

at 12 V supply voltage - 60 mA, at 24 V supply voltage - 35 mA

Average current consumption in alarm mode (with key backlight disabled, with sound and light signaling of "On" states)

at 12 V supply voltage - 80 mA, at 24 V supply voltage - 45 mA

Maximum current consumption in alarm mode (when the key backlight is on, with audible signaling of "Fire" status, or

at 12 V supply voltage - up to 120 mA, at 24 V supply voltage - up to 65 mA

Length of RS-485 communication lines when connecting addressable units

Not more than 3000 m

RS-232 communication line length

Not more than 20 metres

Maximum number of monitored elements (alarm loops, addressable detectors, monitored circuits, addressable outputs)

2048 pcs

Number of outputs (relays of addressable blocks) controlled by standard programs

Polyvinyl chloride plasticate, halogen-free composition pcs

Number of zones (sections)

511 pcs

Number of section groups

128 pcs

Number of events stored in the non-volatile event log

32000 pcs

Number of users

2047 pcs

Overall dimensions of the remote control

not more than 140×114×25mm

Remote control weight

Not more than 0.3 kg

Average service life of the remote control

10 year

Permissible supply voltage range

10.2...28.4 V

Operating temperature range

-10...55 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
