Aluminum Cable End Terminal TA 50-10-9 ZETARUS Available for Import

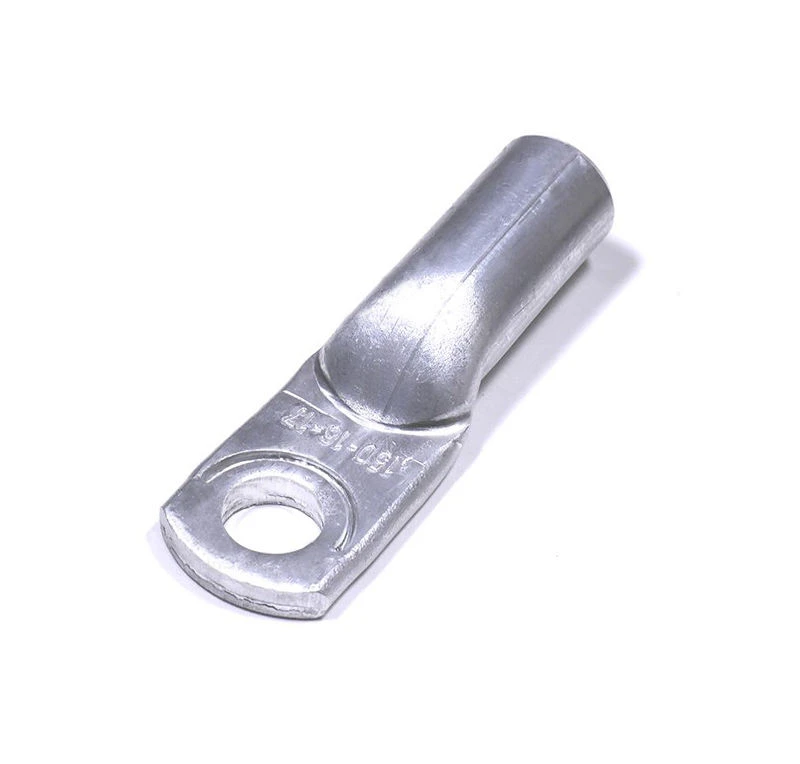

Aluminum Cable End Terminal TA 50-10-9 for Efficient Wire Termination

Cable Accessories
Manufacturer: ZETA OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Aluminium tip TA 70-10-12 ZETARUS Aluminium tip TA 150-16-17 ZETARUS Aluminium tip TA 120-12-14 ZETARUS Aluminium tip TA 35-10-8 ZETARUS Aluminium tip TA 25-8-7 ZETARUS

Description

"Aluminium cable termination TA 50-10-9, fixed by crimping, is designed for termination of wires and cables with aluminium conductors of 50 mm2 cross-section. The tip is made of aluminium tube of mark AD1M.The products correspond to: GOST 9581-80The tips are designed for 1,2 class of flexibility of cable cores. For selection of the sleeve of 3 class of flexibility - use the table. Nominal cross-section Contact rod diameter Dimensions, mm d1 d2 I B D L50 mm2M10916362310.575"

Specifications

Availability of coverage
no
Connector type
Tip
Operating voltage
1...35 kV
Nominal cross-section
SBVVBG mm²
Inner diameter
9 mm
Contact rod diameter
10 mm
Inner shank diameter
9 mm
Climatic version
UHL 3
Cable cross-section 2, 3 flexibility class
SBVVBG mm
Material
Aluminum
