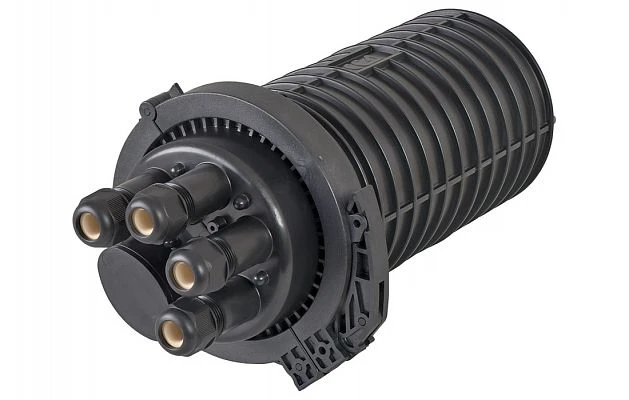

MTOC-F Splice Closure for Self-Supporting Optical Cables

Available for Import

MTOC-F Splice Closure for Installing Self-Supporting Optical Cables

Cable Accessories

Manufacturer: SSD OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for the installation of suspended self-supporting OC, optical cables with a remote power element type "8", as well as city cables of any design. The coupling has an oval entry for transit loop of optical modules without cutting. The loop of modules is laid out on the tray on the opposite side from the cassettes. The method of sealing the housing with the headband is mechanical. It is carried out by means of elastic ring gasket and reinforced plastic clamp with self-tightening lock.

Specifications

Type or grade of material

Armlen

Equipment

Enclosure (headband, cover, clamp),Cassette KT-3645 with cover,KDZS 4525 sleeves,Tweezers for laying KDZS,Set of markers and ties, Silica gel (packet).

Designation

MTOC-F

Type

Dead end

Profile

Cylindrical

Surface protection coating

Clamp, Mechanical

Diameter

215 mm

Weight

2,2 kg

Length

48.8 cm

Resistance to mechanical influences

Single impact not less than 10 Joules

Operating temperature, ºC

-60...70 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
