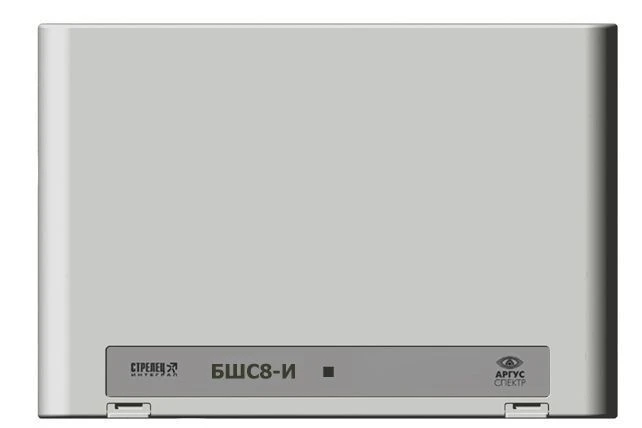

Alarm Signal Cable Block BShS8-I for Effective Security Control

Block of signalling loops BShS8-I is designed to work as part of the integrated security system "Strelets-Integral" or in stand-alone mode. BShS8-I is designed to control eight alarm loops, access control system and various automation systems. BS8-I has the ability to connect two Proximity card readers or Touch Memory keys.

BSHS8-I has two relay outputs. BSHS8-I is powered from an external DC source with voltage of 9-28 V with the possibility of controlling the main and backup power supply. Maximum current consumption: at 24 V supply voltage - not more than 150 mA, at 12 V supply voltage - not more than 250 mA.

Average service life of BSHS8-I is not less than 10 years. Overall dimensions of BShS8-I are 210×143×38 mm. The mass of BShS8-I is not more than 0,3 kg.
