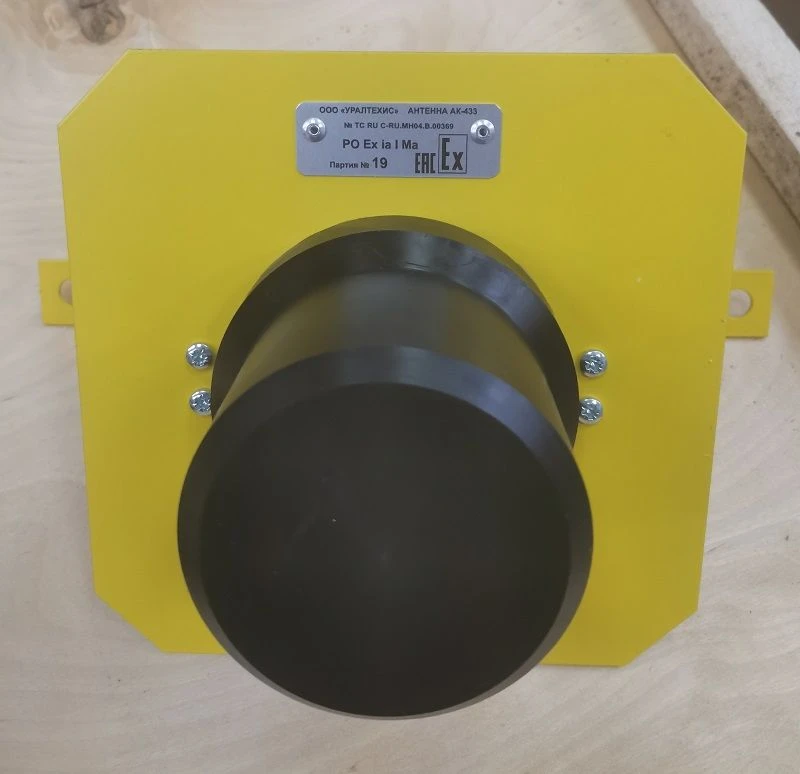

AK-433 Circular Antenna for Effective Signal Transmission and Reception

Antenna ring AK-433 TIS 8.4.5.00.000 is designed to emit and receive radio waves of linear polarisation.The antenna is designed to work on stationary and mobile objects together with the system UTIS-Radio and other receiving equipment of decimetre range of radio waves.Antenna type: non-directional circular short-circuited vertical radiator with linear polarisation with asymmetrical power supply. The radiator is mounted on a metal plate and covered with a protective radio transparent cover.Connector type: N, female. Antenna mounting: with the help of a bracket (included in the delivery set).

Connection of antennas to high-frequency connectors of readers is carried out by means of antenna cable.
