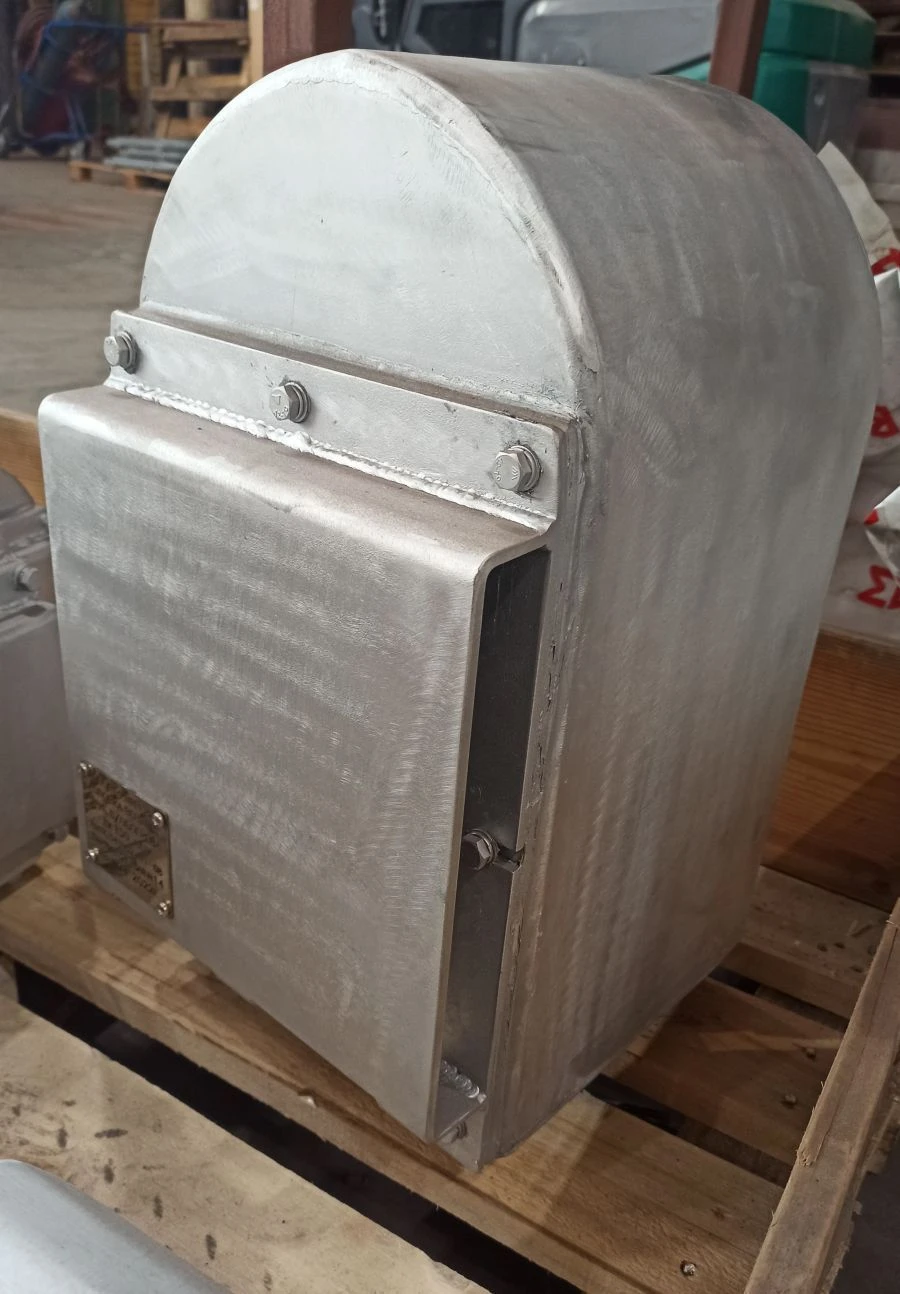

Air head DU150 VMTS.541032.011-08

Head of air pipes without heating with flame-breaking net and non-metallic float. Designed for installation on ships, ships and other watercraft. Material - steel. Dimensions (in mm) 270x296x497. Weight - 40,9 kg. Coating - hot zinc. Operating temperature is not lower than - 35 degrees Celsius. Heads of air pipelines (automatically acting closing of pipes), having a spherical non-metallic float and semi-tompak flame-extinguishing grid, are installed on air pipes of closed water and/or oil tanks (tanks), as well as on tanks of consumable and reserve fuel. The delivery set includes an air head, a mating flange with a seal and fasteners. The air head is self-drying, has a secure fixing and provides prevention of free ingress of water, as well as the free flow of air or liquid to prevent the formation of overpressure or vacuum in the tanks.
