Rope tension force sensor DNK-311

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

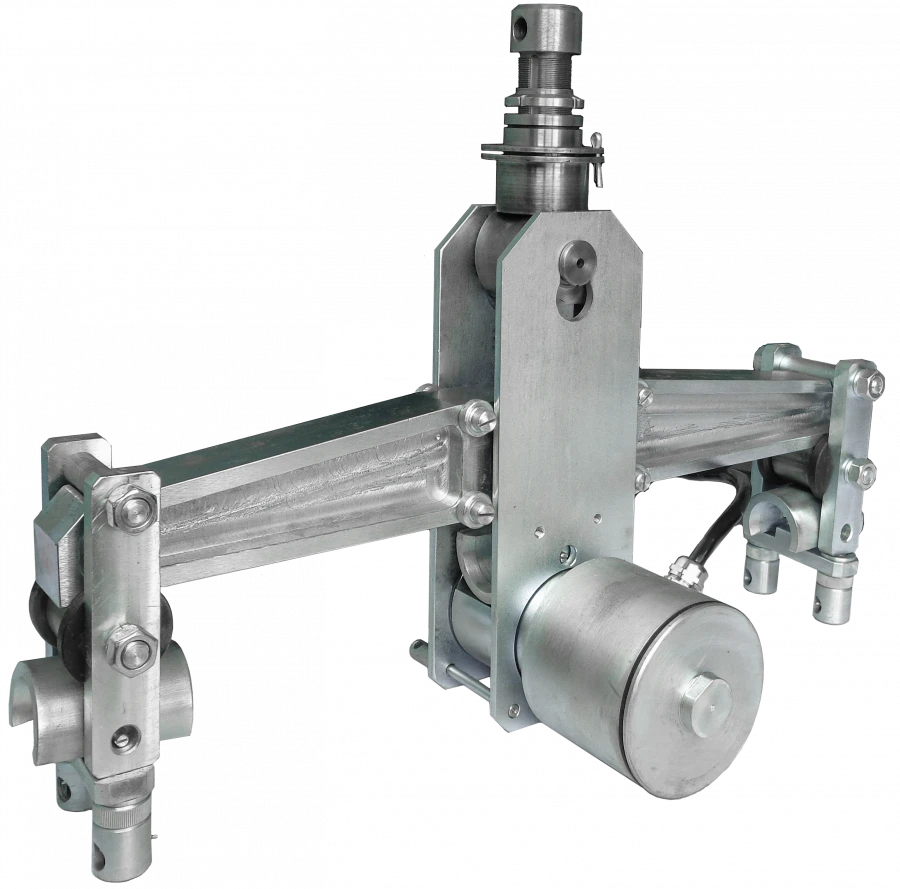

The measuring rope tension force sensor (DNA) is designed for continuous conversion of the measured parameter (tension force of the fixed part of the rope) into an electrical signal for remote transmission to data collection systems of geological and technological research (GTI), monitoring, regulation and control systems of technological processes. DNA is installed on the fixed end of the hoist rope.

Explosion-proof with adjusting screw
1wire digital output
Force measurement range: 8-400 kN
Wire rope diameter: 25 to 39 mm
Explosion-proof, 0Ex ia IIB T5 Ga X

Specifications

Voltage 7...12 V

Weight, not more 13 kg

Service life, at least 5 a

Operating temperature -50...50 °C

Dimensions (DxWxH), mm 560*210*400

Force measuring range 8000...400000

Dimensions (DxWxH), mm 560*210*400

Operating temperature -50...50 °C

Degree of protection against external influences IP65
