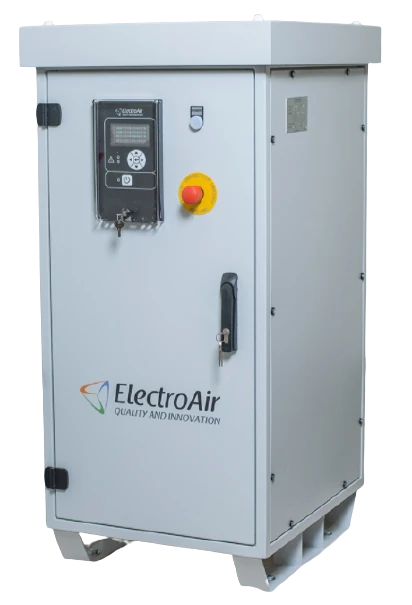

Aerodrome converter EAC-90

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Aerodrome frequency converters of EAC series are designed for ground power supply of onboard equipment and electric start of gas turbine engines of aircrafts (aeroplanes, helicopters, UAVs) of civil and state aviation. They can be used for centralised power supply of workshops and test benches of aviation and radar industry enterprises.
Technical characteristics:
Input: - 380V, 50Hz;
Output: - 1 AC 115/200V, 400 Hz, 90 kVA.
They are manufactured in the following versions: stationary, mobile on a trolley, mobile on a roller support, under the trap.
The aerodrome power supplies use a product control system developed on the basis of a modern domestic 32-bit microcontroller. The new control system allows to exclude the possibility of external control and management of foreign technical means of reconnaissance.
Main advantages:
- High quality of output three-phase sinusoidal sine...

Specifications

Overload 200% 2

Degree of protection (IP) 54

Rated output power (kVA) Flat grinder, Specialised grinder

Rated output voltage 115/200 V

Load variation range 0-100 %

Sinusoidality distortion coefficient, not worse 3 %

Frequency of output voltage 400 ±0.001

Rated load power factor >0.8 at 100% load

Efficiency, in nominal mode, not less than 97 %

Output voltage amplitude modulation coefficient, not more than 1;5 %

Overload 110% 600

Overload 125% 300

Overload 150% 10

Control panel Display; power supply voltage indicator; emergency stop button

Input voltage 3x400 ±10%; pe V

Input frequency 50/60 ±5%

Inrush current soft start

Overall dimensions (DxWxH) 550x690x1252 mm

Weight 390 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
