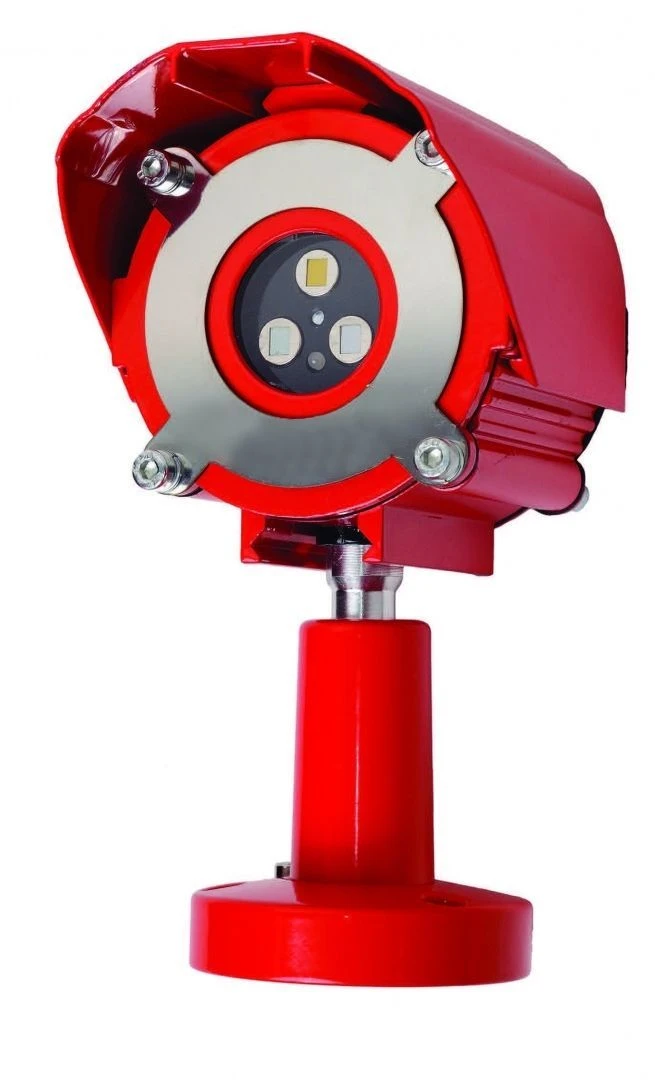

Addressable analogue flame detector TULPAN 64/3-R3, IP 330-64/20-1

Fire detector flame addressable analogue TULPAN 64/3-R3 is designed to detect electromagnetic radiation of flame and the formation of fire notification.
The conventional designation of the detector according to GOST R 53325 is ?? 330-64/20-1.
Class of the detector - 1.
The detector is designed to work with devices PPKOPU "R3-Rubezh-2OP", PPKOPU 011249-2-1 "Rubezh-2OP" prot.R3 and controllers of addressable devices "R3-Rubezh-KAU2", "Rubezh-KAU2" prot.R3.
Power supply and information exchange of the detector is carried out via a two-wire addressable communication line (ALS).
Structurally, the detector is made in the form of an aluminium housing with a canopy. The housing is fixed on a bracket designed for installation of the detector on floors, walls and other building structures of buildings and structures, as well as on technological equipment.
