Linear addressable optical-electronic smoke detector IP212-S300IPDL "S300IPDL" fire detector

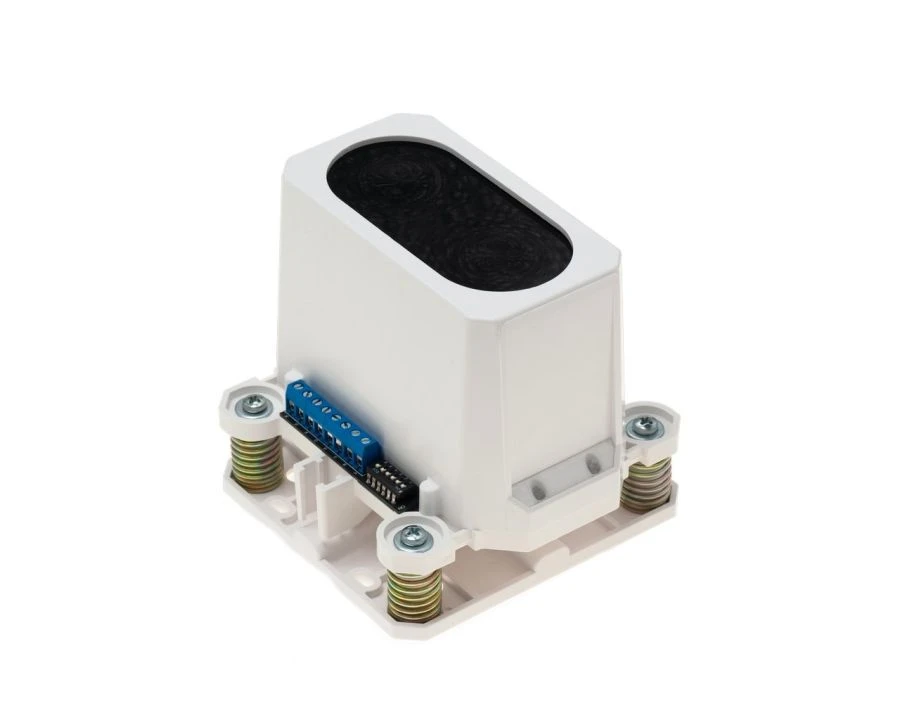

The detectors are designed for continuous round-the-clock operation and are used in enclosed spaces of residential and industrial buildings and structures with addressable receiving and control devices of various manufacturers, switching with which is based on the protocol C300. Distinctive features of this modification: one-position execution; working distance from 8 to 60, to 80, to 100, to 120 metres; precise screw adjustment mechanism. C300IPDL - single-position linear addressable fire detector, consisting of a transceiver and reflector reflector. In the transceiver, the optical channels are separated and isolated in a two-chamber optical system. The C300IPDL uses a high-performance cataphone (retroreflector) as a reflector-reflector. On the sides of the transceiver housing under the mounting covers are located terminal blocks for external connections, software switch tactics detector and connection connector tester MKS300-Tester.
