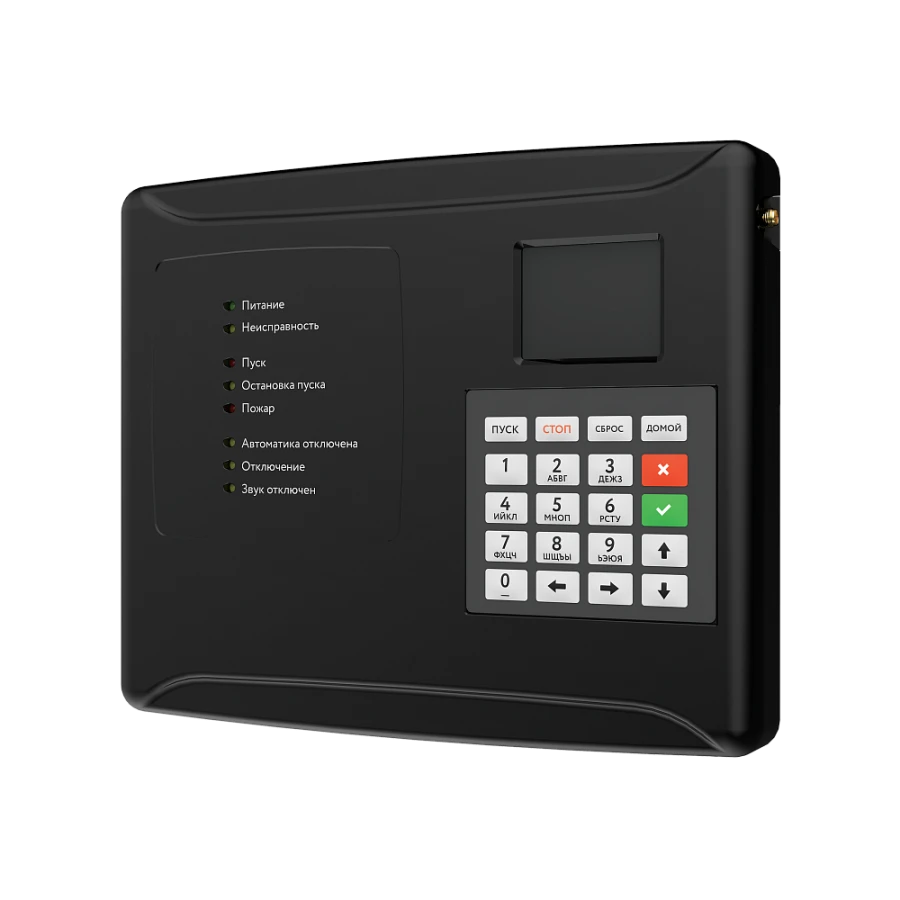

Addressable analogue combined fire alarm control and monitoring device PPK-02-500-0 "RUBETEK"

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Addressable analogue combined fire alarm control and monitoring device PPK-03-500-2 "RUBETEK" Addressable analogue combined fire alarm control and monitoring device PPK-03-500-7 "RUBETEK" Addressable analogue combined fire alarm control and monitoring device PPK-03-500-4 "RUBETEK" Addressable analogue combined fire alarm control and monitoring device PPK-03-500-0 "RUBETEK" Addressable analogue combined fire alarm control and monitoring device PPK-02-500-7 "RUBETEK"

Addressable analogue combined fire alarm control and monitoring device PPK-02-500-2 "RUBETEK" Addressable analogue combined fire alarm control and monitoring device PPK-02-500-4 "RUBETEK"

The devices are designed to receive, process and display signals from fire detectors and other devices interacting with the devices, control the integrity and operation of communication lines, control executive devices of automatic fire protection equipment and control the integrity and operation of communication lines between devices and executive devices.

Technical Specifications

Power supply from a DC source with voltage	24 V
Probability of failure-free operation in 1000 h	0.98
Average MTBF	60000
Average service life	10 a
Weight	0.7 kg
Dimensions (L x W x H), mm	245 x 197 x 32
Degree of enclosure protection	IP20
Relative humidity at + 40 deg. ?	0...93 %
Operating temperature range	-10...55 °C
Maximum communication range (in open terrain)	SBVVBG m
Operating frequency of the Wi-Fi interface	2400
Maximum switched current at each output "OUT1" and "OUT2"	0.45 A
Output voltage	24 V
Number of outputs with line open-circuit and short-circuit monitoring	2 pc
Maximum switched current at the "Dry contact" output	2 A
Maximum voltage at the SC output	220 V
Number of controlled dry contact outputs	2 pc
Maximum line monitoring current of a freely programmable input	0.005 A
Maximum voltage at the freely programmable input	20 V
Number of freely programmable inputs	2 pc
Types of valves to be connected	Electromagnetic, Reversible, With return spring
Maximum communication range between CCPs and radio-channel ODRs via RF 868 MHz interface, in open terrain	900 m
Radiation power	Not more than 25 mW
Channel encryption	XTEA 128bit
Number of channels within the frequency range	5 pc
Operating frequency of the radio channel interface	868
Number of addressable devices connected to the control panel via PLC and RF 868 MHz interface	250 pc
Maximum length of the PLC interface	3000 m
Maximum PLC load current per channel	0.35 A
Number of PLC interfaces	2 pc
Maximum interface length between RS-485 segments	100 m
Number of RS-485 interfaces	2 pc
Number of occupied addresses in the CAN network	1 pc
Communication interface	CAN, RF 868 MHz, RS-485, PLC, Wi-Fi
Own current consumption in "Fire" mode	Not more than 0.32 A
Own current consumption in standby mode	Not more than 0.22 A
Maximum length of the CAN interface, including repeaters	500 m
Number of controllers connected to the control panel via CAN interface	32 pc
Supply voltage of remote control valves, OZK valves	220 V
Maximum length of the CAN interface, excluding repeaters	100 m
Maximum number of RA-30 repeaters connected in series in one CAN line	4 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
