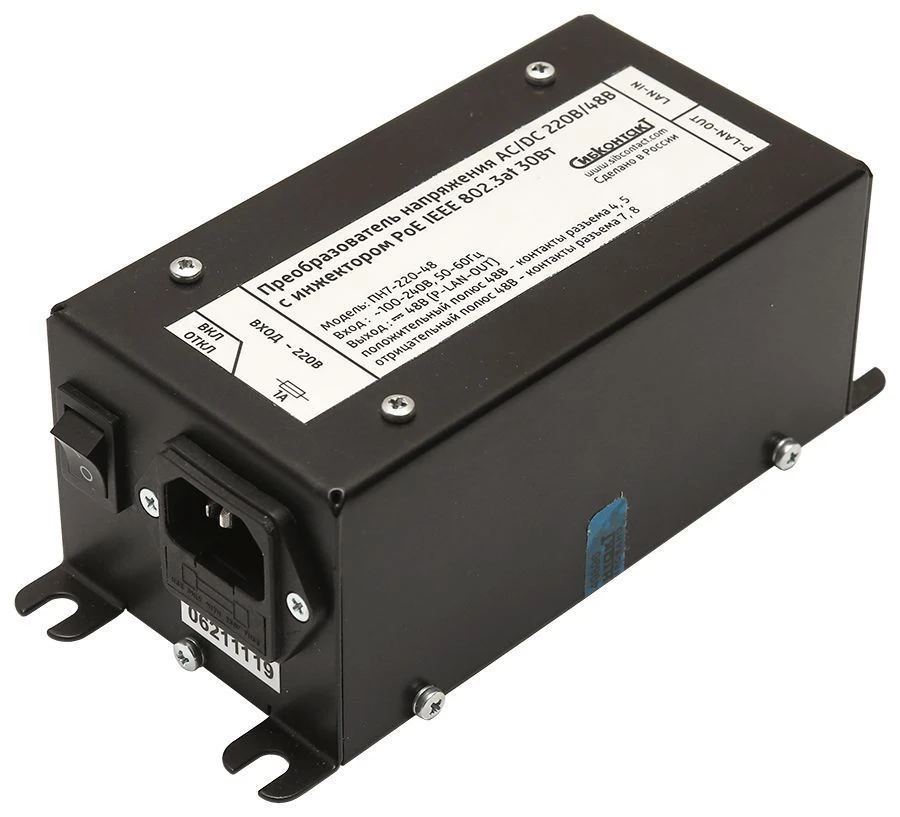

Active PoE Injector AC/DC Converter PN7-220-48 for Wi-Fi, IP Cameras, and More

AC/DC Active PoE injector PN7-220-48PoE, supports IEEE 802.3at standard. It is designed to power over Ethernet access points Wi-Fi, IP-cameras and other devices that support PoE technology. For correct operation of the converter it is necessary that the device connected to it supports IEEE 802.3at standard.

The converter is powered from an AC voltage source of 100...240 V with a frequency of 50...60 Hz and provides power to devices via two pairs of UTP5 cable with constant stabilised voltage of 48 V. Type of information input connector RJ-45 "LAN-IN" for connection to the local network (switch) by means of standard network cable of category 5e; Type of information output connector RJ-45 "P-LAN-OUT" for connection of powered network equipment by means of standard network cable of category 5e. The converter output voltage is supplied: on pins 4/5 - positive pole, on pins 7/8 - negative pole.
