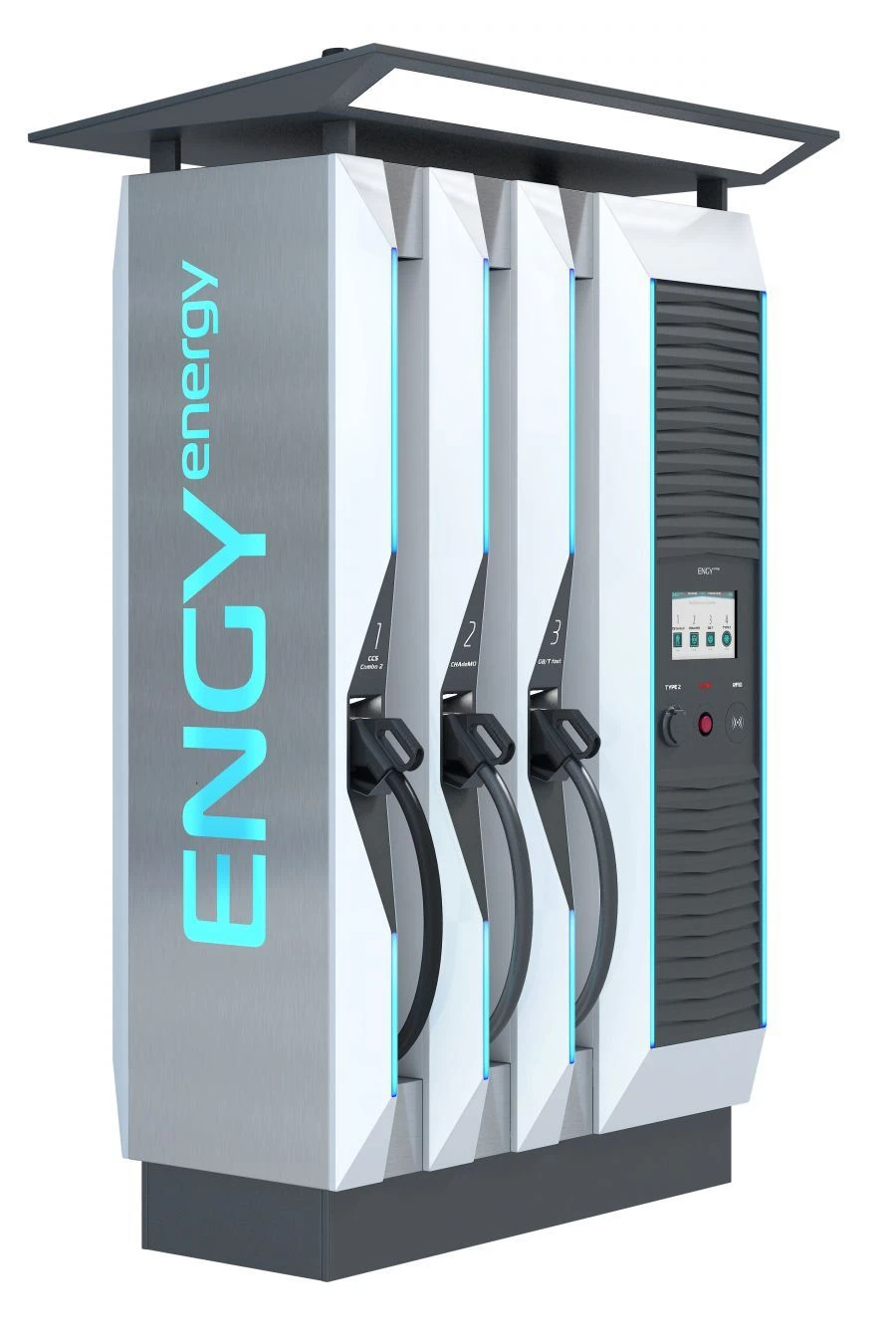

Fast Charging Station for Electric Transport, Model CS3.2 - Charge Up to 4 Vehicles Simultaneously

Fast charging station for electric vehicles, model CS3 is designed for charging batteries of electric vehicles. Possibility of simultaneous charging of up to 4 electric vehicles. The unique system of cable suspension prevents mechanical damage and contamination.

Main features: <ul> <li>- 60 to 240 kW station capacity to choose from a switching range: 60/90/120/150/180 (when 30 kW charging modules are installed),</li> </ul>80/120/160/200/240 (with 40 kW charging modules) <ul> <li>- direct current (DC): up to 180 kW (3 connectors to choose from: CCSCombo2, CHAdeMO, GB/T);</li> <li>alternating current (AC): up to 44 kW (1 connector to choose from: Type1 socket/ Type2 socket/GB/T-AC socket);</li> <li>protection class IP 54</li> <li>charging protocols IEC 61851-23 PLC (CCS Combo 2) CAN 2.0 (CHAdeMo); GBT 20234/27930; ISO 15118</li> <li>overall dimensions (H x W x D): 2530 x 1710 x 1050 mm;</li> <li>mass: 900 kg;</li> <li>operating mode: temperature from -25 ?C to +40 ?C, humidity from 5% to 95%</li> </ul>.
