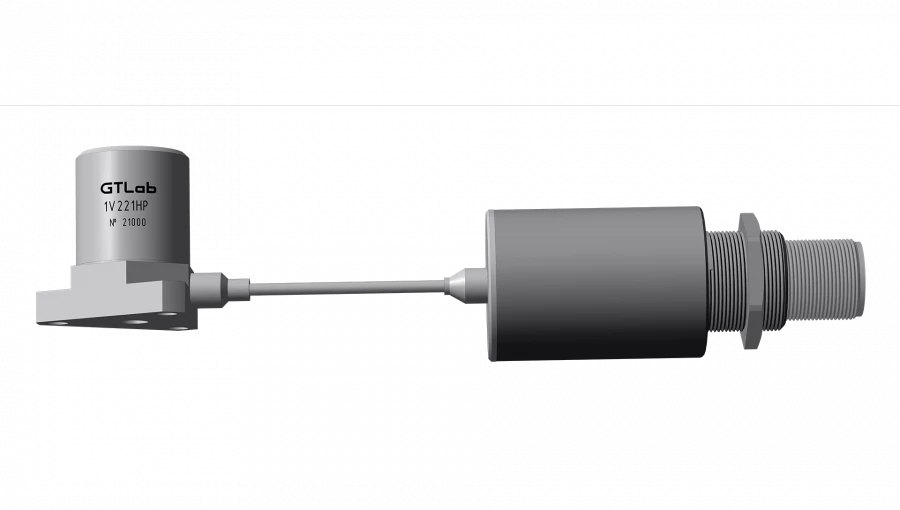

Accelerometer 1V221HP-10

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Voltage output accelerometers are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Industrial vibration acceleration transducers with voltage output are designed for monitoring the state of industrial equipment in conditions of strong industrial interference.

Specifications

Natural frequency in fixed state > 15 kHz

Relative transverse conversion ratio < 5 %

Operating temperature range of the sensor -60 ... +400 °?

Operating temperature range of the electronic unit -40 ... +125 °?

Power supply: ? supply voltage ? current consumption + (18 ... 30) V < 10 mA

DC output voltage level 8 ... 13 ?

Output impedance < 100 ohms

Time to establish operating mode 4 ?

Coefficient of influence of ambient temperature ± 0,05 %/ °?

Housing material stainless steel

Weight (without cable) 95 ?

Conversion factor (± 5%) 1 mV/(m-s-2)

Maximum value of the measured acceleration amplitude ± 5,000 m/s2

Maximum impact (peak value) ± 10,000 m/s2

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons 10 ... 8 000 Hz 20 ... 5 000 Hz 40 ... 3 000 Hz

Noise level, RMS (1 Hz ÷ 10 kHz) 0.15 m/s2

Conversion factor (± 5%) 4 mV/mm/sec.

Measured speed range 0,1 ... 1 270 mm/s

Operating frequency range: ? frequency response non-uniformity ± 3 dB ? frequency response non-uniformity ± 5% 25 ... 2 000 Hz 40 ... 1 000 Hz

Noise level, RMS (5 Hz ÷ 2 kHz) 0,05 mm/sec

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
