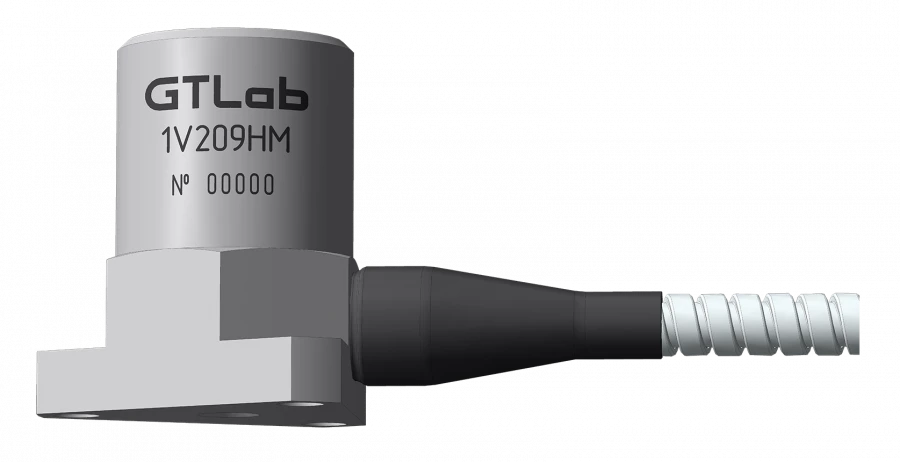

Accelerometer 1V209HM-100

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Voltage output accelerometers are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Industrial vibration acceleration transducers with voltage output are designed for monitoring the state of industrial equipment in conditions of strong industrial interference.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Acceleration conversion factor 10 mV/(m-s-2)

Relative transverse conversion ratio < 5 %

Maximum value of the measured acceleration amplitude ± 500 m/s2

Maximum impact (peak value) ± 5,000 m/s2

Operating temperature range -55 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons 0.3 ... 12,000 Hz 0.5 ... 8,000 Hz 1 ... 5,000 Hz

Natural frequency in fixed state > 25 kHz

Noise level, RMS (1 Hz ÷ 10 kHz) 0.002 m/s2

Output impedance < 100 ohms

Power supply: ? voltage ? current + (18 ... 30) V 2 ... 20 mA

DC output voltage level 8 ... 13 ?

Coefficient of influence of ambient temperature ± 0,2 %/ °?

Time to establish operating mode 4 ?

Housing material stainless steel

Weight (without cable) 90 ?

Electrical strength of insulation between cable body and conductors 500 ?

Pyro-sensitivity: ? from 0.2 Hz ? from 3 Hz 0.002 g/°C 0.0005 g/°C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
