Available for Import

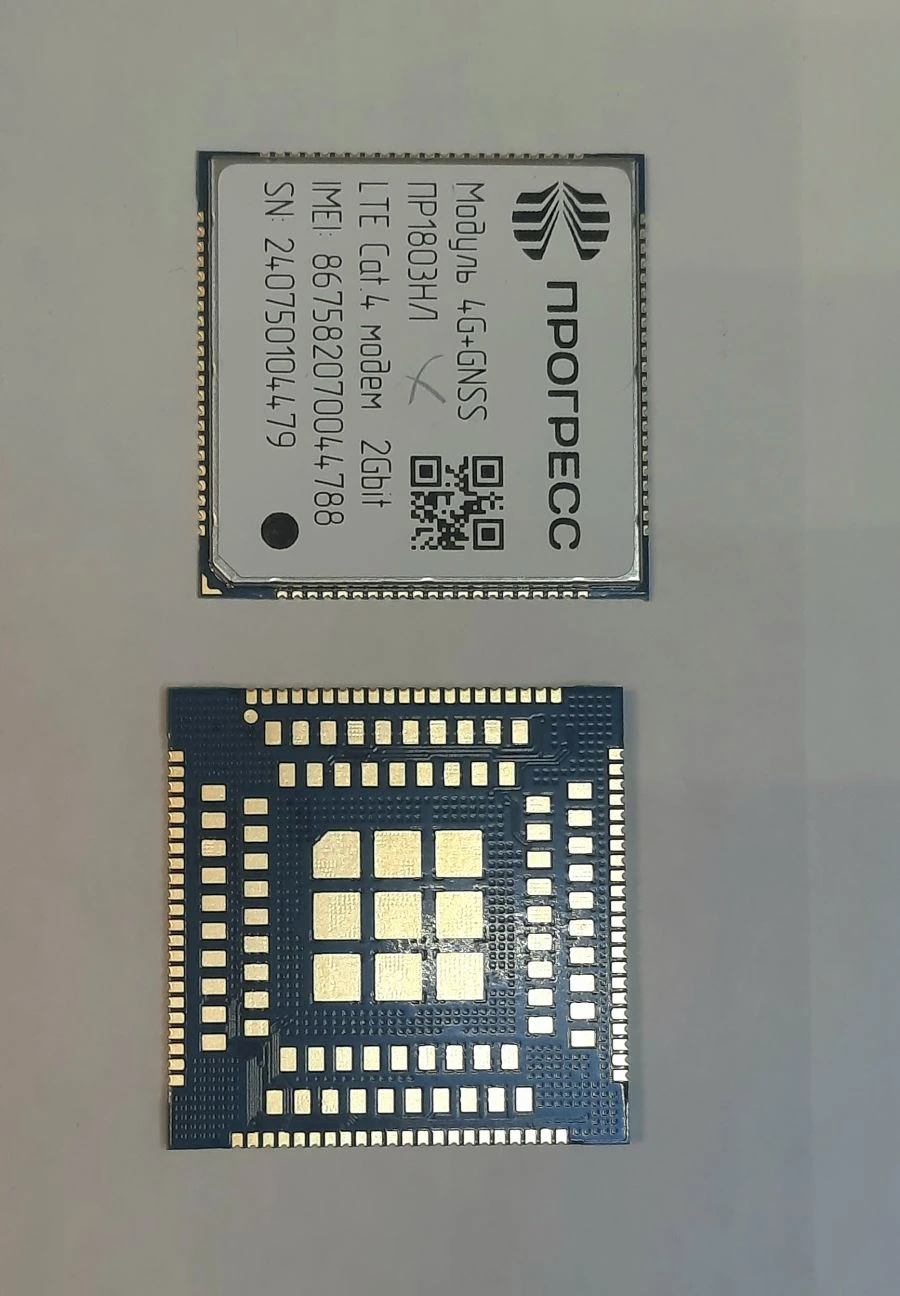

4G+GNSS module (PR1803NL)

Navigation Communication Modules

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Specifications

Frequency range GSM: EGSM 900, DCS 1800; UMTS: WCDMA B1/B6; FDD-LTE: B3/B7/B20;TDD-LTE: B38

Output power, W For GSM/GPRS: - EGSM900: power class 4(2W); DCS1800: power class 1(1W); For EDGE: - EGSM900: E2(0.5Bt); -DCS 1800: E1(0.4W); For UMTS: - WCDMA: power class 3 (0.25W); For LTE: power class 3 (0.25W).

Maximum throughput in packet data transmission mode GPRS: Multislot - class 12; EDGE: Multislot - class 12; UMTS R99: DL/UL 384 Kbps; HSPA+: UL/DL 5,76/42 Mbps; HSDPA/HSUPA: UL/DL 2,2/2,8 Mbps; FDD-LTE CAT4: UL/DL 50/50 Mbps; TDD-LTE CAT4: UL/DL 35/130 Mbps

LTE Category CAT.4

Internal GNSS Present. Support GPS, GLONASS, BeiDou via NMEA 0183 protocol

External GNSS (directly outside) Present

Possibility of independent operation of GNSS receiver Present

Wi-Fi interface Interface to external chip

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
