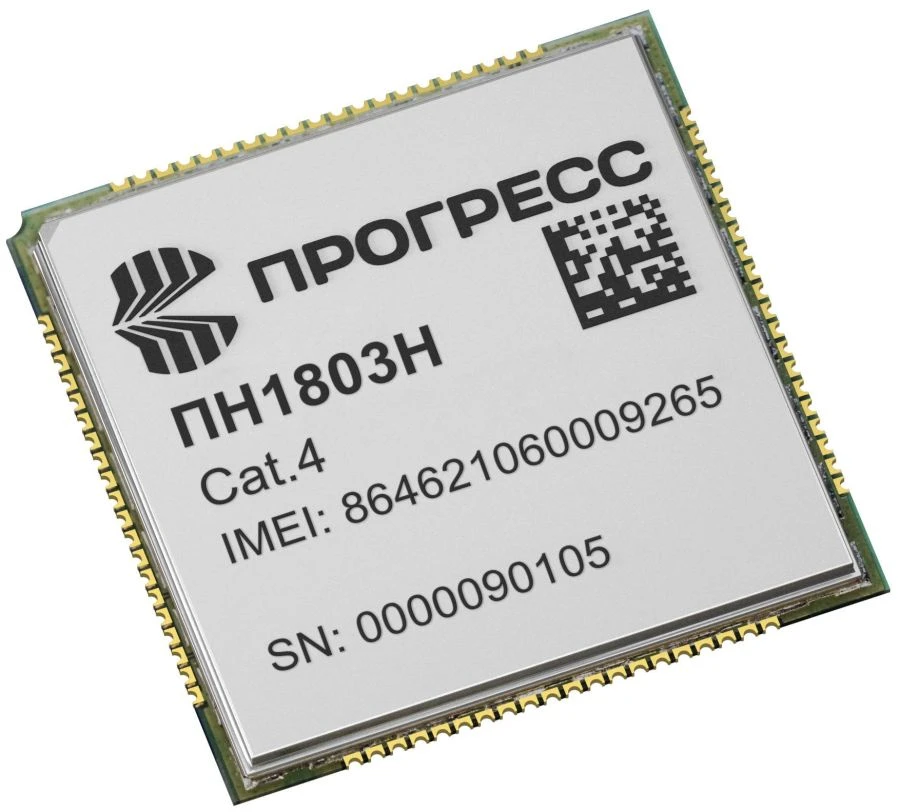

4G+GNSS module (PN1803H)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
-
Specifications
Frequency range
GSM: EGSM900, DCS1800; UMTS: WCDMA B1/B8; FDD-LTE: B3/B7/B20/B31; TDD-LTE: B38
Output power
For GSM/GPRS: - EGSM900: power class 4 (2W); -DCS1800: power class 1 (1W).For EDGE: -EGSM900: E2 (0.5W); -DCS1800: E1 (0.4W). For UMTS: - WCDMA: power class 3 (0.25W). For LTE: power class 3 (0.25 W)
Maximum throughput in packet data transmission mode
GPRS: multi-slot-class 12, EDGE: multi-slot-class 12, UMTS R99: DL/UL 384 kbps, HSPA+: UL/DL 5.76/42 Mbps, HSDPA/HSUPA: UL/DL 2.2/2.8 Mbps, FDD-LTE CAT4: UL/DL 35/130 Mbps
LTE Category
CAT.4
Internal GNSS
Present support GPS, GLONASS, BeiDou via NMEA 0183 protocol
External GNSS (directly outside)
Present
Interfaces
UART, USB, SDC, SPI, I2C, WLAN, PCM, ACP, RMII
UART
Used for general use and for debugging
USB
Support USB 2.0 (slave device)
ADC interface
Support two common ADC interfaces
Antenna
GSM/UMTS/LTE main antenna, UMTS/LTE diversity antenna and GNSS antenna
Wi-Fi interface
Interface to external chip
26 MHz output
Present
Output 1.8 V
Present
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
