4-Channel Current Signal Input Module MCS100-AI4i Available for Import

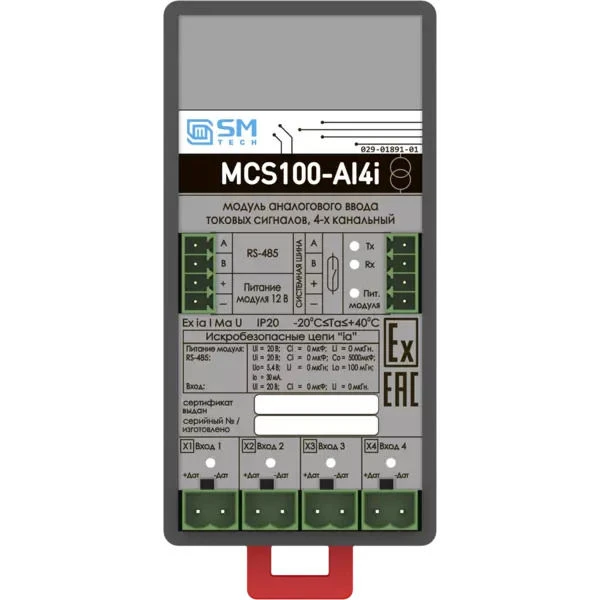

4-Channel Current Signal Input Module MCS100-AI4i for Receiving and Processing Current Signals

Digital Signal Converters
Manufacturer: SPBEX-MINING LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Module of analogue input of current signals, 4-channel MCS100-AI4i is designed to receive and process unified current signals: 05 mA, 0(4)20 mA

Specifications

Weight
0.13 kg
Overall dimensions
122mmx55.5mmx32mm
Mounting the device
DIN rail: -type, width 35 mm, recommended height 7.5 mm/15 mm
A communication protocol used to transmit information
ModBus-RTU; ModBus-ASCII; internal
Communication interface
RS-485
Type of analogue current signals
0..5, 0..20, 4..20 mA
Type of sensor to be connected
potential
Power consumption, max.
1 W
Rated supply voltage
B1/B8 2100/900 MHz V
Protection class against electric shock
III
Degree of protection against external influences
IP20
Operating temperature
-20...40 °C
Explosion protection marking
Ex ia I Ma U*

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
