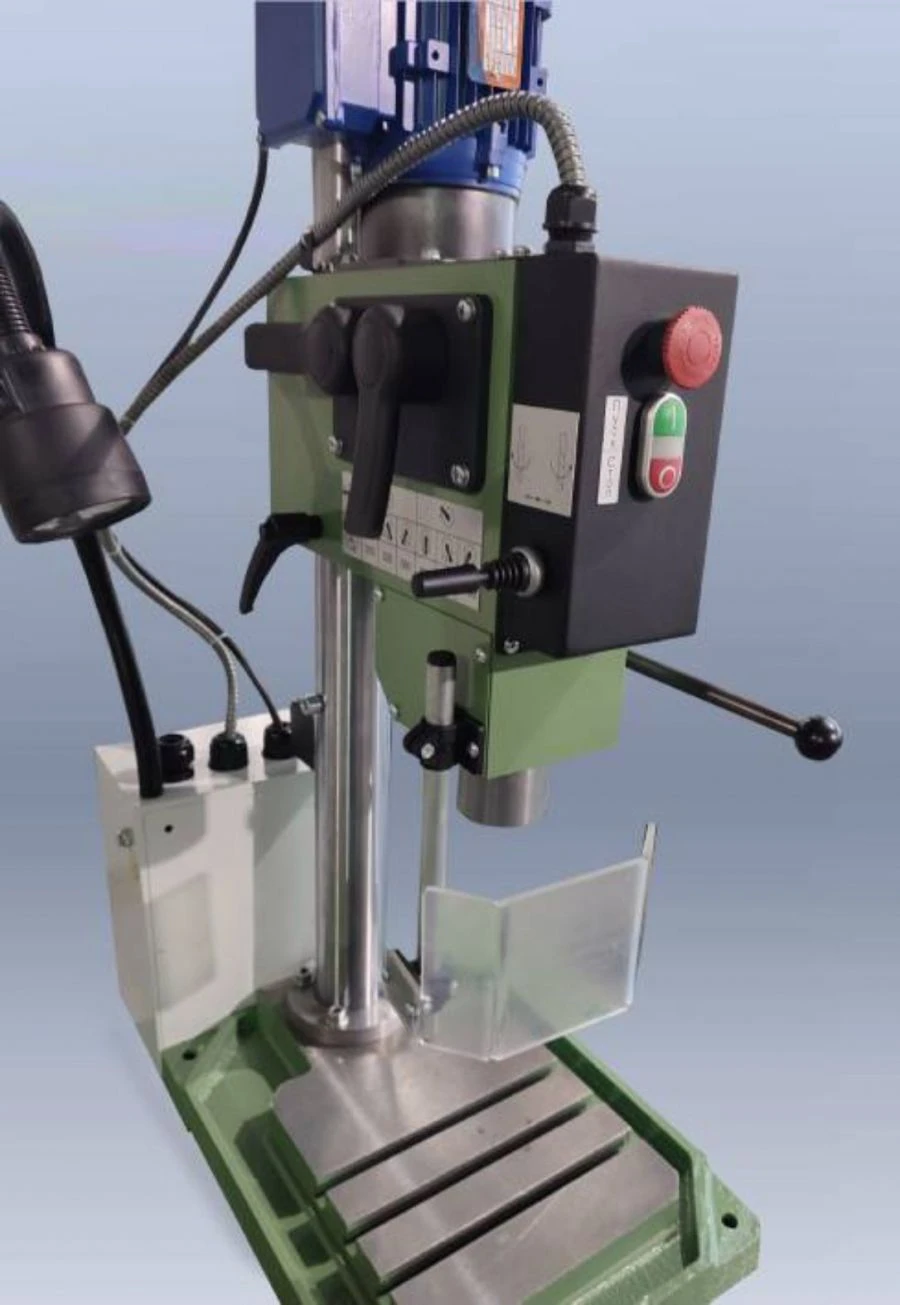

2C118 Bench Drill Machine for Precision Drilling and Tapping

Metal Drilling Machines

Manufacturer: UZS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The 2C118 Bench Drill Machine delivers precision drilling for commercial fabrication, medical device manufacturing, and specialty tooling facilities. Cast-iron construction ensures stability for repetitive threading and hole operations across steel, non-ferrous alloys, and composites. Built to industrial compliance standards with integrated safety guards and adjustable feed mechanisms for controlled material engagement.

Ideal for job shops, prototype facilities, and certified manufacturing environments requiring consistent accuracy and operator safety. Requires dedicated bench installation with vibration isolation and 220V three-phase power. Heavy-duty spindle bearings and rigid column design minimize runout, meeting ISO and ANSI drilling precision specifications for high-volume production runs and quality-critical applications.

Specifications

Type of product according to PP RF 616

Vertical drilling machines

Largest nominal drilling diameter

18 mm

Largest drilling diameter in steel 45

18 mm

Largest drilling diameter in cast iron CH20

20 mm

Thread cutting in steel 45

?16 mm

Smallest and largest distance from spindle end to table

160 ... 460 mm

Distance from spindle axis to guide post (outreach)

195 mm

Thread cutting range

M4..M16 mm

Table work surface size

250x250 mm

Number of T-slots

3 pcs

Distance between slots

SBVVBG mm

Type of spindle feeding

Manual pcs

Dimensions of T-slots according to GOST 1574-91

14?12 mm

Maximum movement of drilling (spindle) head (headstock)

200 mm

Stroke of spindle sleeve

Flat grinder, Specialised grinder mm

Spindle speed

200, 320, 560, 800, 1200, 2100

Number of spindle speeds

6 pcs

Spindle inner cone according to GOST 25557-2016

morse 2 AT6 pcs

Highest torque on the spindle

Highest axial cutting force

4000

Mains current

AC three-phase 50Hz, 380V

Main motion drive motor

0.75 kW

Electric motor shaft speed, synchronous

1500

Pump drive motor

0.18 kW

Electric motor shaft speed, synchronous

3000

Dimensions of the machine (length width height), without cabinet and tool cooling system, max.

349*610*1168 mm

Machine weight, without pedestal and tool cooling system, max.

125 kg

Machine dimensions (length width height), with tool cabinet and tool cooling system, max.

860*707*2020 mm

Machine weight, with tool cabinet and tool cooling system, max.

250 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
