?????????????? ?????-?11
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

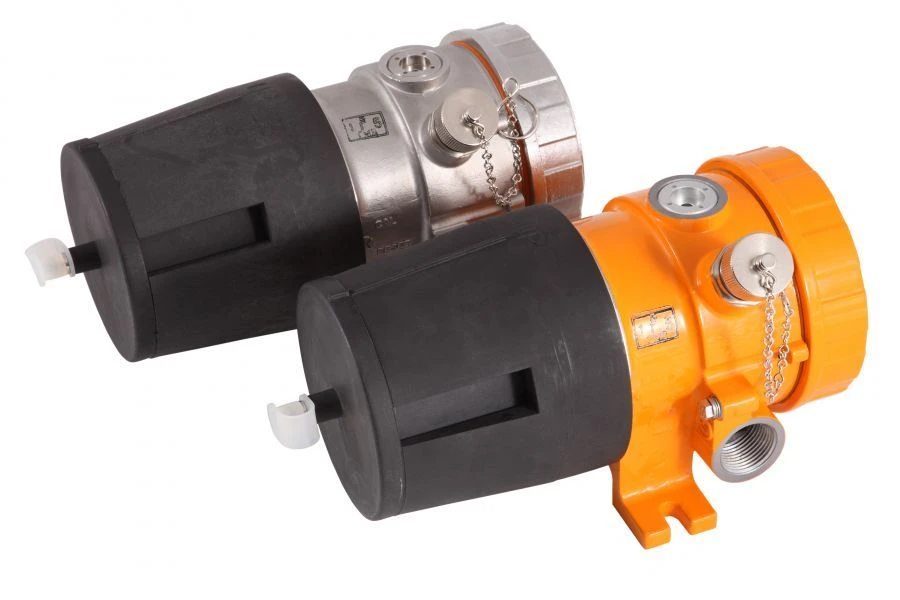

Description
Designed for measuring pre-explosive concentrations of methane, propane, butane, isobutane, pentane, cyclopentane, hexane, propylene, vapours of methyl and ethyl alcohols, ethane, ethylene, toluene vapours, benzene, acetone, methyl tert-butyl ether, para-xylene, ortho-xylene, vapours of isopropyl alcohol, cyclohexane, heptane, ethylbenzene vapours in a mixture with nitrogen or air, as well as for control of working area contamination with vapours of real industrially used petroleum products (petrol, paraffin, diesel fuel, white spirit, etc.).?.).
Field of application - explosive zones of premises and outdoor installations near the process equipment of pumping stations of main gas and oil pipelines, tank farms, loading racks, etc. according to GOST IEC 60079-14-2011 (IEC 60079-14:1996), underground workings of mines, mines and their above-ground structures, dangerous by mine gas and/or combustible dust, other objects of operation according to other normative documents, regulated by the... .
Field of application - explosive zones of premises and outdoor installations near the process equipment of pumping stations of main gas and oil pipelines, tank farms, loading racks, etc. according to GOST IEC 60079-14-2011 (IEC 60079-14:1996), underground workings of mines, mines and their above-ground structures, dangerous by mine gas and/or combustible dust, other objects of operation according to other normative documents, regulated by the... .
Specifications
Weight
2.5 kg
Controlled gas
hydrocarbons;combustible gases;vapours of oil products
Type
Optical infrared
Equipment
Cable gland - 1 pc; plug - 1 pc; protective cover - 1 pc.
Housing material
aluminum; stainless steel 316
Operating temperature range
-60 °C
Power supply voltage
18 V
Degree of protection
IP67
Size
135x135x245 mm
Explosion protection marking
1Ex d [ib] IIC T4 Gb pc
Degree of protection
IP67
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
