Available for Import

Indicator tubes IT-IC/VP

Gas and Smoke Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Registration No. in the Federal Information Fund 62580-15.

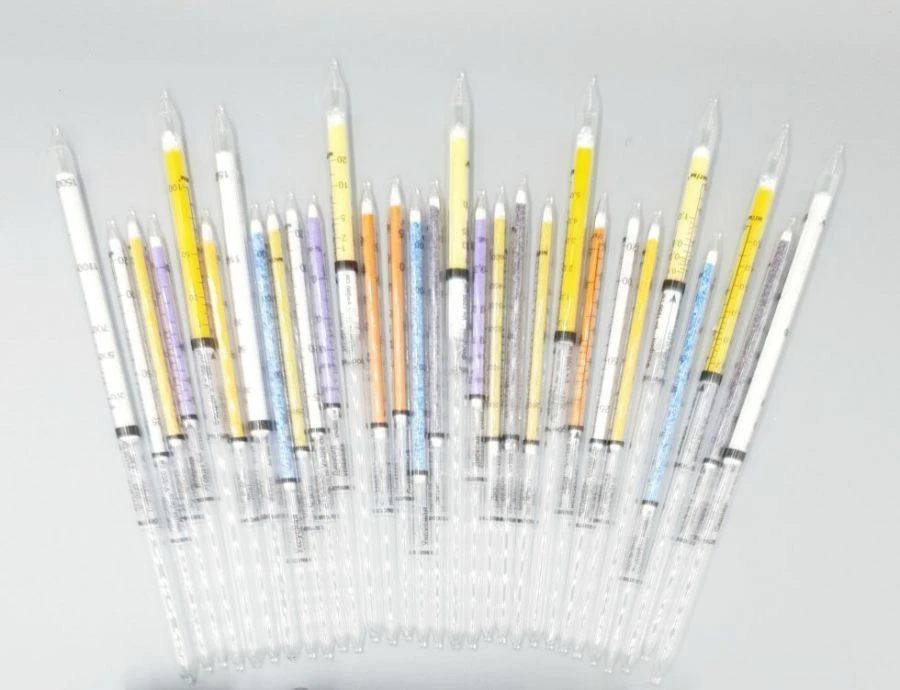

Indicator tubes IT-IC/VP (hereinafter - IT) are designed for measuring mass concentration of harmful gases and vapours, mercury vapour and volume fraction of oxygen, carbon dioxide in air media. To pump the sample of the gas medium through the IT, aspirators of the approved type piston or bellows aspirators (AM-5, AM-0059, NP-3M, UG-2 and others with similar characteristics) are used.

The main applications of indicator tubes are:
- Environmental protection;
- protection of safe labour conditions;
- special assessment of labour conditions;
- control of technological processes.

The main advantages of using indicator tubes are:
- No sample preparation;
- prompt response in case of threats to environmental safety;
- no need for sources of electrical and thermal energy;
- portability and mobility.

Specifications

Housing material Glass

Controlled gas Acrolein, acrylonitrile, ammonia, arsine, acetaldehyde, acetylene, acetone, benzene, benzene, bromine, butane, butanol (iso-butanol), butyl acetate, vinyl chloride, monoethanolamine, ozone, carbon monoxide, nitrogen oxides, propane, propane-butane mixture.

Operating temperature range From +10 to +35 "C °C

Measured components Acrolein, acrylonitrile, ammonia, arsine, acetaldehyde, acetylene, acetone, benzene, benzene, bromine, butane, butanol (iso-butanol), butyl acetate, vinyl chloride, hexane, heptyl (asymmetric dimethylhydrazine), hydrazine, diesel fuel, nitrogen dioxide, su

Mass concentration measurement range From 0.03 (for mercury vapour) to 60,000 (for diethyl ether).

Measurement range of volume fraction From 0.03 (for carbon dioxide) to 30 (for carbon dioxide) %

Relative error tolerance limits 25 %

Shelf life 12 to 18
