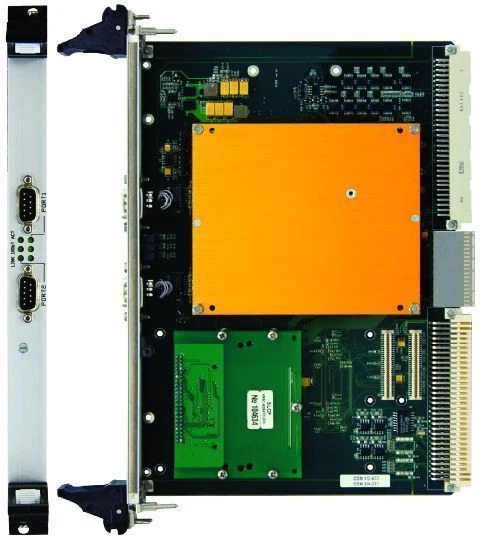

The module is a PC/AT-compatible processor module and is designed to be used as the main central computing and processing device in automated control systems with VME bus.
The module is a recoverable multichannel, multifunctional product, complies with the State System of Industrial Instruments and Means of Automation (SSP) and can be used in telemechanics, process control and measuring and computing systems. The module has a design that meets the requirements of GOST 28601.3-90 and requires placement inside other products (in VME mounts) during operation.
The manufacturer guarantees the conformity of the product quality to the requirements of the technical specifications if the customer observes the conditions and rules of storage, transport, installation and operation established by the technical specifications and operational documentation.
Guaranteed shelf life - 10 years from the date of manufacture at the enterprise...

Technical Specifications

Impact 1000 g	0.5...2 ms
Vibrations 2 g	1 … 200
Typical current consumption	Not more than 2.5A at minimum module resource utilisation; not more than 4.0A at maximum module resource utilisation.
Power supply voltage	+4.85 to +5.25V
NAND-Flash	IDE soldered NAND-Flash , up to 8 Gbytes capacity
Temperature range	-40...+75 ?
Ethernet	One 10/100BaseTX channel, back side output
Serial ports	Up to 4 asynchronous 16550-compatible channels with baud rates up to 115.2Kbaud, 16 bytes FIFO, RS232 interface for COM1/2/3/4, RS422 interface option for COM1/2. Output on the back side.
PMC slot	Rms 32 bit/33MHz interface (I/O signal level - 3.3V/5V) for standard mezzanines with output on the front side of the module. Backside output is only available for the KPMC105 (MIL1553).
Relative humidity	100% non-condensation at +50 C and below
DRAM	Up to 2 Gbytes

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
