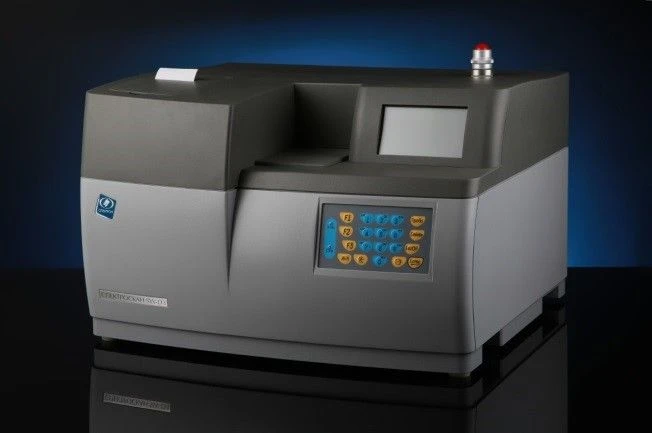

X-ray fluorescence wave dispersive analysers SPECTROSCAN CLSW

Universal Composition Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The analysers are designed to measure the mass fraction of chlorine and sulphur in liquid samples such as oil and oil products, hydrocarbons, reagents for the oil industry and aqueous solutions
The analysers include: an X-ray tube, a scanning X-ray spectrometric channel providing measurement of the X-ray spectrum in the wavelength range from 0.4000 nm to 0.5500 nm, a detector, auxiliary electronic assemblies, an integrated controller and a cooling system for the X-ray tube. The scanning X-ray spectrometric channel and detector, are located in a volume which is vacuumised by means of a vacuum pump, the samples are in air during the measurement.

Specifications

Number in the SI state register 56587-14

Defined elements chlorine; sulphur

Method wave dispersive x-ray fluorescence spectrometry

Method of spectral line extraction crystal diffraction

Crystal analyzer pyrolytic carbon c(002)

Sampling device lateral; for three samples (automatic); vertical mounting of samples

Overall dimensions, mm, not more 530x480x340

Weight of spectrometer unit, not more 40 kg

Power consumption, max. 750

Measuring range of chlorine mass fraction, mg/kg (mln-1) 0;5 - 10 000

Measuring range of mass fraction of sulphur, mg/kg (mn-1) 1;0 – 50 000

Chlorine detection limit in 600 s, mg/kg (mn-1) 0;07

Sulphur detection limit in 300 s, mg/kg (mn-1) 0;2

Implemented standardised methods for chlorine determination GOST R 52247 Method B; GOST 33342 Method B

Implementable standardized methods for the determination of sulfur GOST P 52660-2006; GOST ISO 20884-2016; GOST P 53203-2008; GOST 33194-2014; ASTM D2622-2016

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
