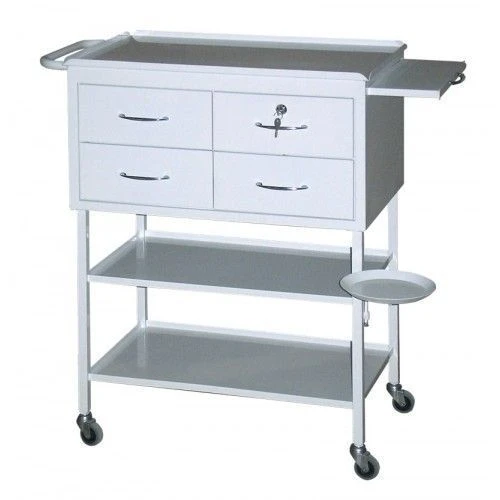

Wound Dressing Station Table SP-02 for Medical Applications

Table for dressing departments. The construction consists of a frame and elements fixed on it by welding. The table top with 16mm flanging is installed on the top, under it there is a sliding shelf with a handle, 4 drawers on roller guides (one of them with a lock), under the drawers there are two shelves with 16mm flanging, on the right front post there is a rotary plate for consumables, on the left side there is a handle for moving and three hooks.

The distance between shelves is 225mm, from the top shelf to the bottom drawer is 167mm. The dimensions of the shelves are 592x352mm. The size of the pull-out shelf (when extended) is 280x340mm.

Evenly distributed load on the shelf, table top - 5kg, on the pull-out shelf - 1kg. The inner size of the drawer is 353x245x76mm. The table is mounted on imported rubberised wheels Ø50 mm.

The frame of the table is made of profile square tube 20x20mm; table top, shelves, drawers are made of sheet steel 1.0mm thick. The coating is powder polymer, white colour.
