Available for Import
Working wheel, compression, D3550N, shaft 0.87", type ARZ, Niresist / IMPELLER: BRG HSG, D3550N, .87, ARZ, N
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

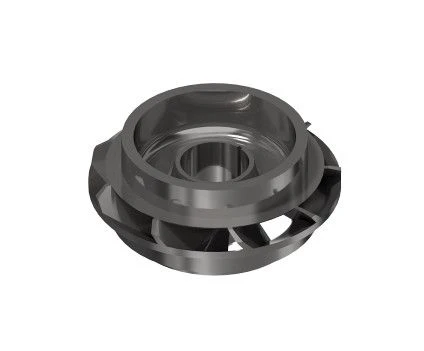

Working wheel D3550N.
Nominal flow rate 3550 barrels per day (565 m3/d).
Application: Element of a pumping stage used to convert mechanical energy from the drive motor into energy of the fluid flow.
Diameter - 81,38 mm, height - 23,165 mm, material - alloyed cast iron Niresist. Weight - 0,41 kg
Nominal flow rate 3550 barrels per day (565 m3/d).
Application: Element of a pumping stage used to convert mechanical energy from the drive motor into energy of the fluid flow.
Diameter - 81,38 mm, height - 23,165 mm, material - alloyed cast iron Niresist. Weight - 0,41 kg
Specifications
Nominal flow rate
3,550 barrels per day (565 m3/d)
Diameter
81.38 mm
Height
23.165 mm
Material
alloyed cast iron Niresist
Weight
0.41 kg
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
