Available for Import

Wiring tester TEST-9110-LXI

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

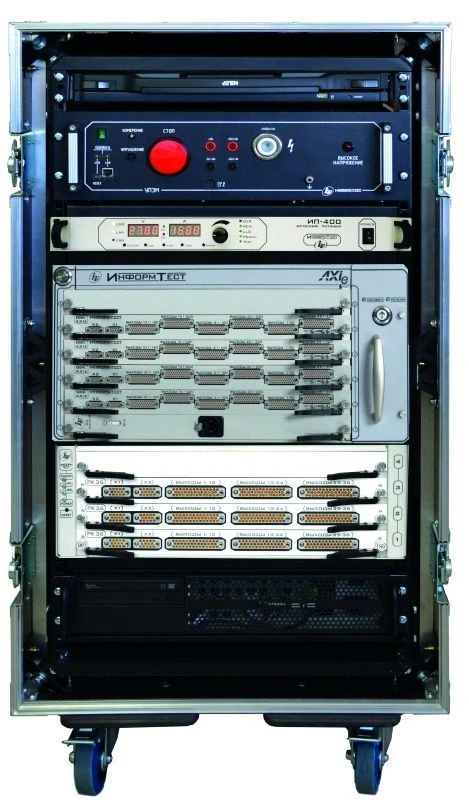

Wire installation tester TEST-9110-LXI is a modular system of automated quality control of harnesses and wiring. The system is based on the open international standard LXI, AXIe and VXI.
The system finds application in a wide range of production processes for inspection of:
-cable networks of complex and demanding objects
-unmounted printed circuit boards
- quality of assembly of electrical units before the first inclusion in critical systems
-quality of manufacturing of complex harnesses

Specifications

Measurement of electrical capacitance 0.1 to 1×10^7 nF

Reproduction of DC current, mA 0.1...2000

Reproduction of RMS value of AC voltage with frequency 50 Hz 25...2500 V

DC Voltage Reproduction 0.1...3500 V

Name Wiring tester TEST-9110-LXI

DC voltage measurement -700...700

Measurement of DC electrical resistance in four-wire circuit 1×10^-3 to 1×10^7 ohm

Measurement of direct current electrical resistance in two-wire circuit 0.1 to 1×10^7 ohms inclusive.

Measurement of DC electrical resistance using a four-wire circuit at a given sampling current of 100 mA 0.001...30

Measurement of RMS value of AC voltage with frequency 50 Hz 1...700

Measurement of insulation resistance 1×10^5 to 1×10^10 ohms

Number of channels 0...200000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
