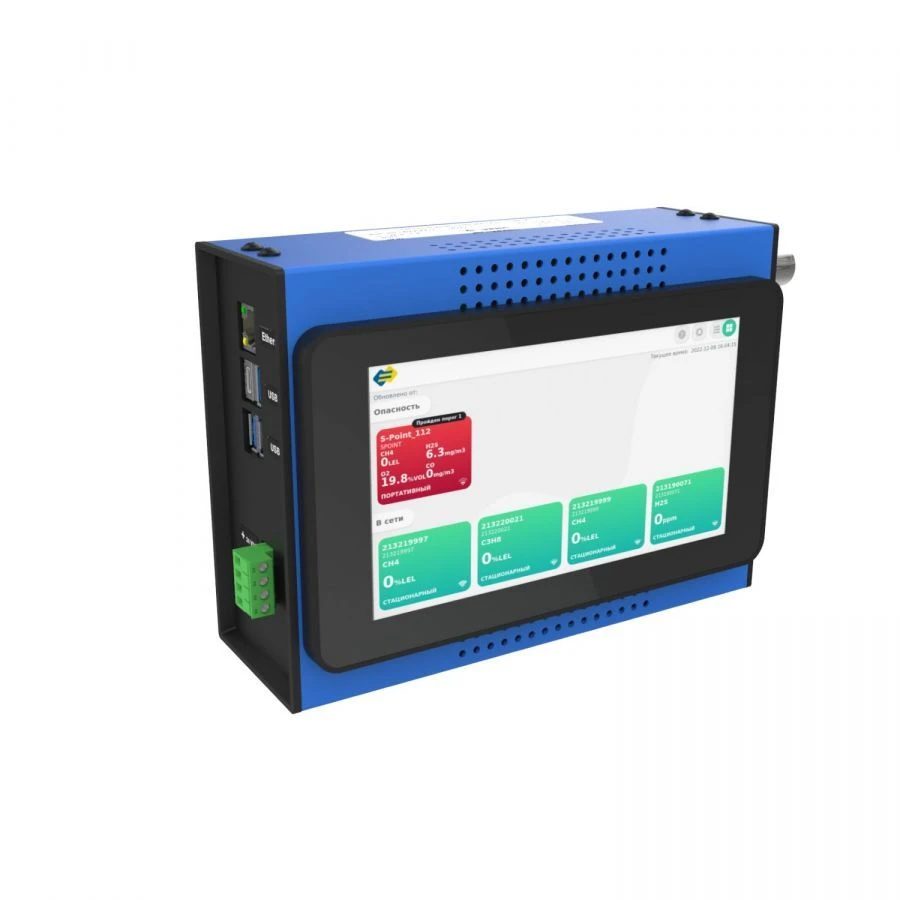

Wireless access point LoraBox

The device is a customisable control system for wireless devices manufactured by "ERIS" Ltd.
devices produced by LLC "ERIS", with support for up to 80 channels of control of gas detection.
gas detection. If necessary, the number of wireless devices can be
increased by increasing the number of wireless access points LoraBOX.
The device is designed for LoRaWAN network deployment on the frequencies of the range of
864 - 870 MHz.
The device consists of a housing and an electronic board, on which there are four
modules:
- 24/5 V power supply module;
- LoRa module;
- relay module;
- microcomputer module.
On the sides of the device are located:
- 24 V power connector;
- USB Type-C, USB 3.0 connectors (3 pcs.);
- Ethernet connector;
- RS485 connector;
- N-type antenna connector;
- relay outputs up to 8 pcs.
