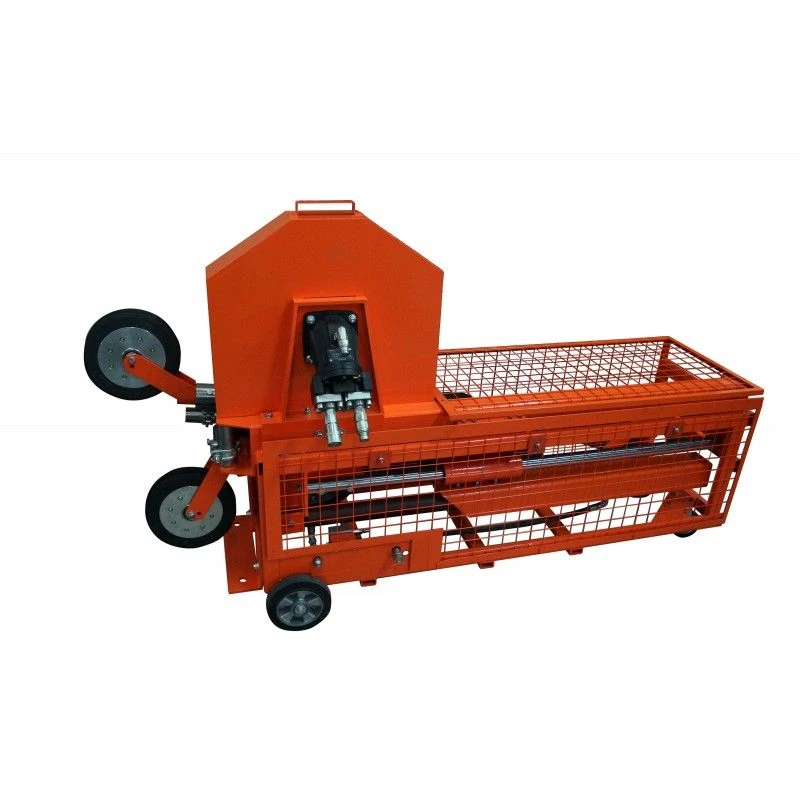

Wire rope machine DUS WS 5624

The wire rope machine is designed for cutting building structures using diamond wire rope.
Preferably cutting with water cooling, because it allows to fully utilise the resource of diamond wire, protects the operator and the environment from dust.
It belongs to the class of machines for medium-heavy work.
The main part of the machine includes the machine drive and the rope accumulator. The rope accumulator can utilise the useful rope length of 21 [m], i.e. 15 [m²] of cutting area without shortening the rope and readjustment. The wire rope machine is designed for vertical cutting, horizontal cutting, plunger cutting (depth cutting) and cutting in confined spaces.
The technical capabilities of the machine suggest its effective application both in open areas and indoors.
The wire rope machine has a modular design and can be easily assembled on site with minimum time.

The principle of operation of the wire rope machine is based on the property of the moving diamond segment...
