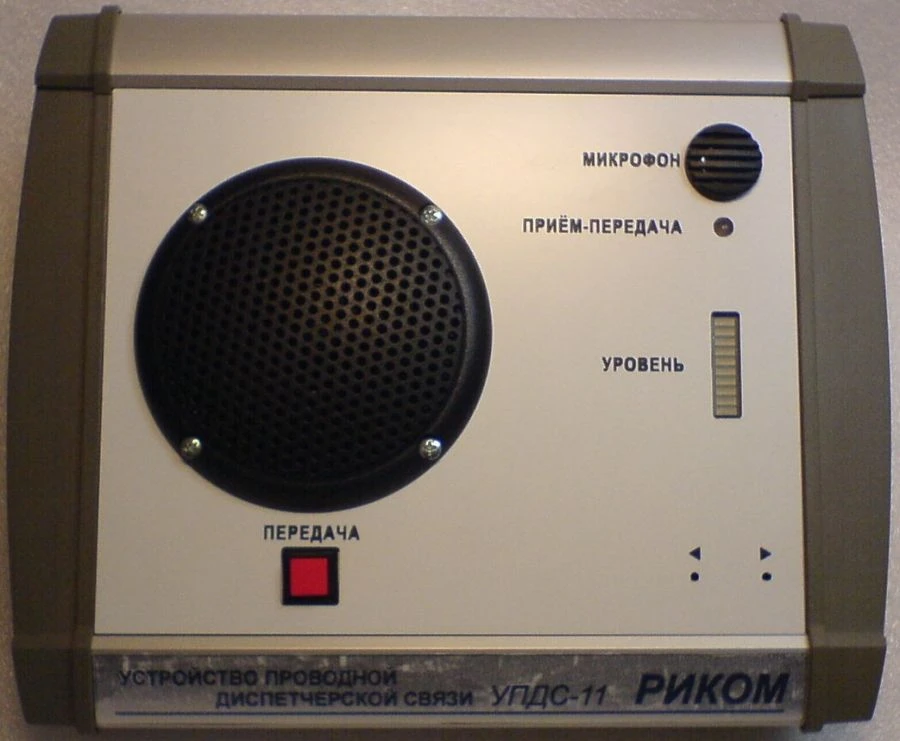

Wire dispatch communication device UPDS-11

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
Devices of wire dispatch communication UPDS-11 (hereinafter referred to as products) are intended for operation in conditions of crossing rooms of underground. In terms of resistance to climatic factors during operation the product corresponds to group K1 according to OST 32.146-2000, for operation at ambient air temperature from +5 deg. C to +45 deg. ?. MAIN TECHNICAL CHARACTERISTICS: DC supply voltage, V, in the range: 18 to 36; Maximum consumption, W, not more than 5; Supply voltage ripple level, mV, not more than 150; Input resistance modulus of the receiving amplifier, kOhm, not less than 10.0; Sensitivity of the receiving amplifier, mV, not less than 10.0; Maximum output power of the receiving amplifier, W, not less than 2.0; Maximum output power of the transmitting amplifier, W, not less than 2.0; Output voltage of the transmitting amplifier, V, not more than 10.0; Bandwidth of amplifiers, kHz from 0.3 to 3.4; Number of products connected to one communication line, pcs., not more than 40; Maximum range of communication...

Technical Specifications

Output voltage of transmission amplifier, V, not more than 10 V
DC supply voltage 18...36 V
Supply voltage ripple level 0.15 V
Receiver amplifier input impedance module 10000 ohm
Sensitivity of the receiving amplifier 0.01 V
Maximum output power of the receive amplifier 2 W
Maximum output power of the transmission amplifier 2 W
Maximum consumption 5 W
Number of products to be connected to one communication line 40 pc
Amplifier bandwidth 0.3...3.4
Additional information The product works together with the UPDS-3M product (PVF "Detektor") providing compatible signal parameters.
Product weight 1500 g
Maximum communication range with total line resistance of 2 kOhm and capacitance of 2 µF, km, not less 20
Overall dimensions 250x200x80 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
