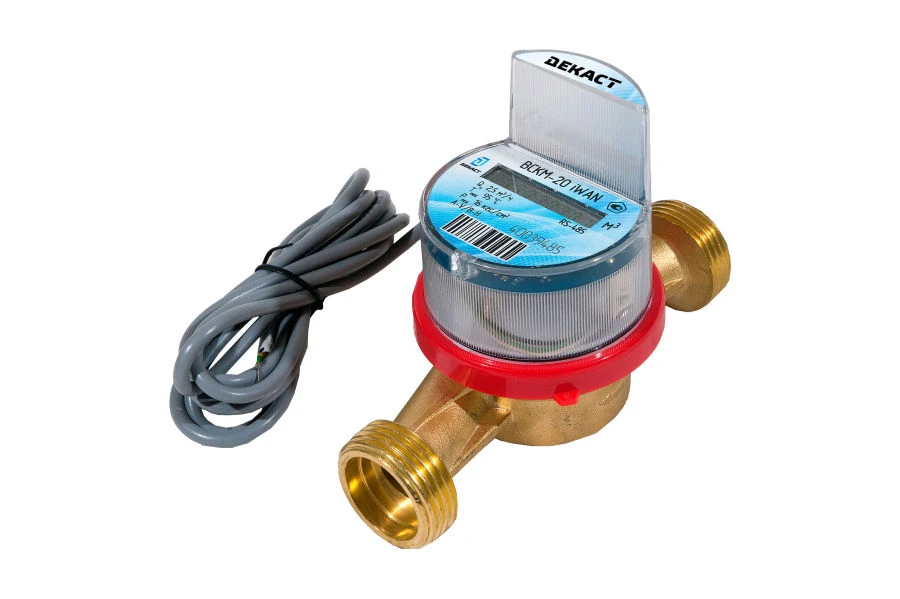

Winged cold and hot water meter Decast VSCM-20 iWAN RS

Water and Liquid Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The meters are designed to measure the volume of drinking water according to SanPiN 2.1.4.1074-01 in residential buildings, as well as in industrial buildings during accounting operations. Wired data transfer protocol RS-485. Mounting length 110 mm. The principle of operation of the meter consists in measuring the number of revolutions of the sensitive element (impeller) rotating under the action of the flow of flowing water. The number of revolutions of the sensitive element is proportional to the volume of water flowing through the meter. Structurally, the meters consist of a body (flowing part) and counting mechanism (electronic unit with liquid crystal display). The verification procedure is MP 208-001-2023.

Specifications

Guaranteed shelf life (from the production date) B1/B8 2100/900 MHz

Warranty service period 72

Inspection interval 6 a

Tolerance limits of relative error in the range Qt (inclusive) - Qmax, % +2

Tolerance limits of relative error in the range Qmin-Qt, % +5

Discreteness of the control scale of the indicator device 0.0001

Capacity of the counting mechanism 99999.9999

Mounting length 130 mm

Water temperature range 5...95 °C

Maximum water pressure 1.6 MPa

Pressure loss at Qmax 0.1 MPa

Sensitivity threshold (max.) 0.01

Diameter of nominal passage, DN 20 mm

Type of product according to PP RF 616 Other tools and instruments for measurement, inspection and testing

Minimum water flow rate (metrological class A) Qmin 0.1

Minimum water flow rate (metrological class B) Qmin 0.05

Transient water flow Qt (metrological class A) Qt 0.25

Transient water flow rate Qt (metrological class B) 0.2

Nominal (operating) water flow rate Qn 2.5

Maximum water flow Qmax 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
