Available for Import

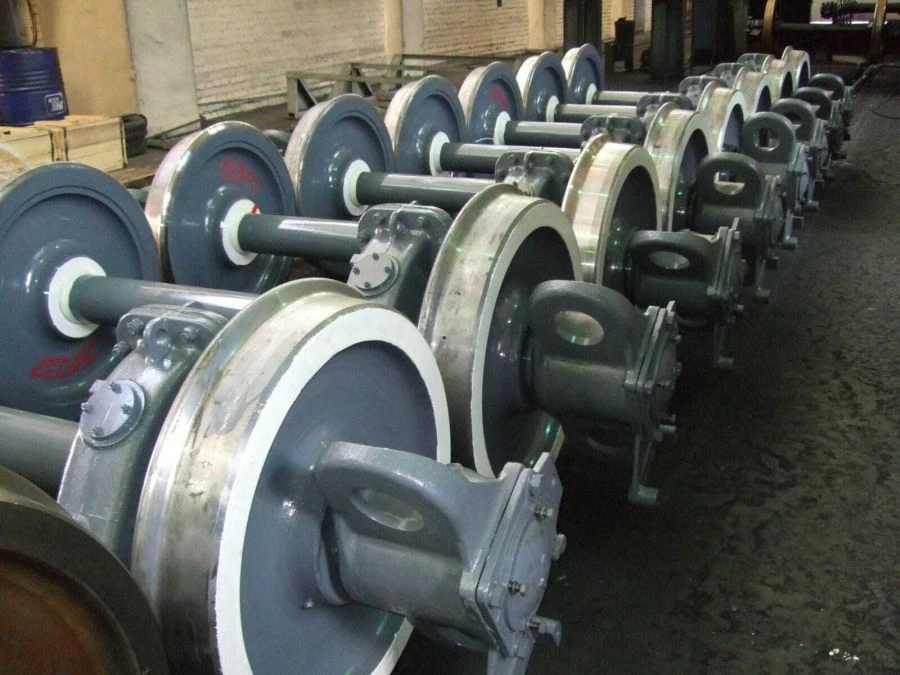

Wheel set 2.7175.31.10.011.11
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Wheelsets are designed to take the load from the wagon, the direction of its movement on the rail track and are a link in their interaction.
Main technical characteristics of wheelsets
- design speed 90 km/h
- by wheel design - wheelsets with solid-rolled wheels
- weight of wheelset with solid rolled wheels 1400 kg
- wheel diameter along the rolling circle 780 mm
-distance between the inner faces of the wheels 1440 mm
-dimension between the end faces of the inspection covers 2406 mm
-gear ratio of the wheelset gearbox 5,33
-nominal diameter of wheelset axle journals 110 mm
-type of axlebox bearings -roller bearings
-highest static load on the axle 140 kN (14 tonnes)
method of connection between wheelsets and bogie - spindle-type
Technical Specifications
| Type of product according to PP RF 616 | Component spare parts) of subway cars, not having independent groupings |
|---|---|
| Type | absent |
| Weight | 1.46 t |
| Length | 2402 mm |
| Width | 785 mm |
| Height | 785 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
