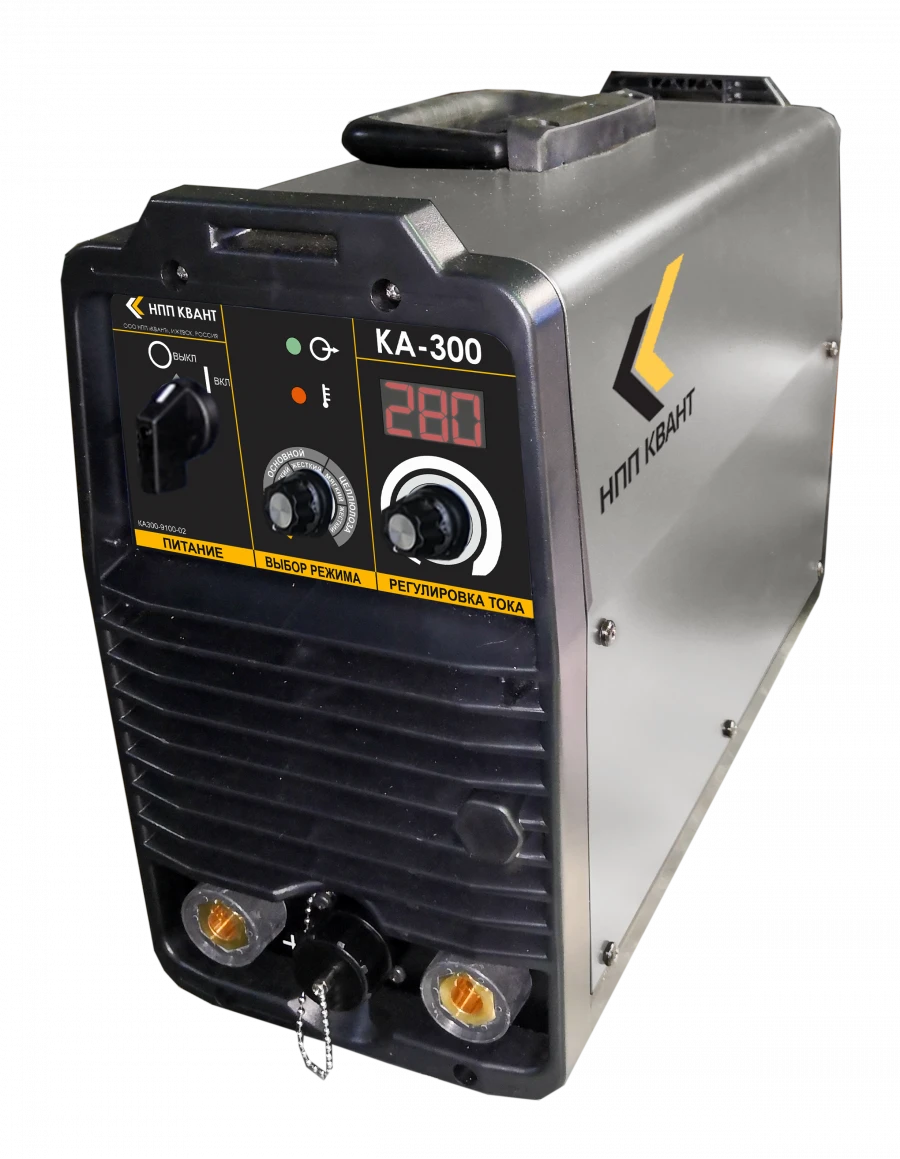

Welding rectifier of inverter type KA-300

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The inverter arc welding rectifier KA-300 is designed:
-for manual arc welding (MA) of steels on direct current by electrodes with basic and cellulose coated electrodes with diameter 2-5 mm;
-for welding with non-melting electrode in argon RAG (TIG)/.
To create safe working conditions when carrying out welding works in the RD mode, the inverter has a built-in idle voltage reduction device (VSR).

Technical Specifications

Type of product according to PP RF 616	Arc welding equipment
Power	16 kW
Rated welding current	300 A
Operating voltage	31.2 V
Minimum welding current	30 A
Welding current adjustment range	30...300 A
Service life	5 a
EFFICIENCY	80 %
Insulation class	F
Protection class	IP23
Current consumption	25 A
Switching modes	soft; hard
Magnetic current compensation mode	Armoured glass
Manual argon-arc welding with a non-melting electrode	Armoured glass
Weight	20.6 kg
Dimensions	557x191x343 mm
Mark	KA-300
Type	inverter
Weight	20.6 kg
Equipment	Arc welding rectifier KA-300, 1 piece; operating documents, 1 set; spare, replacement parts and accessories, 1 set.
Load Duration (LL)	100 %
Type of welding voltage regulation	smooth
Mains frequency	60
AC mains supply voltage	380 V
Contact welding	no
Manual arc welding	Armoured glass
argon-arc welding	Armoured glass
Semi-automatic welding	no
Automatic welding	no
Frequency of supply voltage	60
Type of welding current	permanent
Maximum welding current	300 A
No-load voltage	67 V
Height	343 mm
Width	191 mm
Length	557 mm
Operating modes (continuous/pulse)	continuous
Maximum power consumption, kW	16

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
