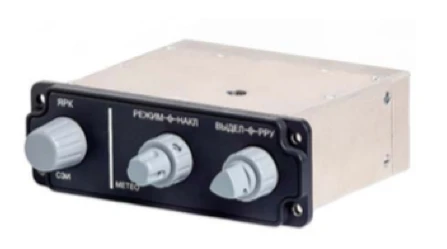

Weather Control Panel TDC-17-M for Aviation Navigation and Equipment Control
Manufacturer:
RPKB OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The TDC-17M control panel as part of the helicopter flight equipment complex controls the brightness of interfacing equipment and onboard meteonavigational radar station.
Functions of the control panel when working with meteonavigational radar station:
- control of station gain and separation factor;
control of the antenna tilt angle;
- switching of the station operation modes.
Functions of the control panel when working with meteonavigational radar station:
- control of station gain and separation factor;
control of the antenna tilt angle;
- switching of the station operation modes.
Specifications
Electricity supply
18.0 to 31.5 B
Continuous operation time
at least 15 h
Standby time after power on or power failure
no more than 2 seconds
Equipment
The TDS-17M remote control can be equipped with white or green illumination (adaptable for night vision goggles) and engraving in English or Russian.Taking into account the horizontal or vertical positioning of the remote control, the engraving on the fron
Failure rates
- Average MTBF in flight: at least 10,000 hrs - Average MTBF and damage: at least 5,000 hrs
Dimensions
146×48×154,3 mm
Weight
0.70 ±0.07 kg
Information exchange channels
ARINC 429 (2 inputs / 1 output) RS 232 (process channel) RK (4 inputs / 3 outputs)
WSF categories according to KT-160D
KT/160D VVF. [V4/A4]HVAV[GU/(BA) (B1A)]XXXDFSZAAZZ[RR]M[A2C22]XXA
Operating temperature range
-40 °C to +55 °C
Power consumed from the "27 V" power supply network
No more than 8 W
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
