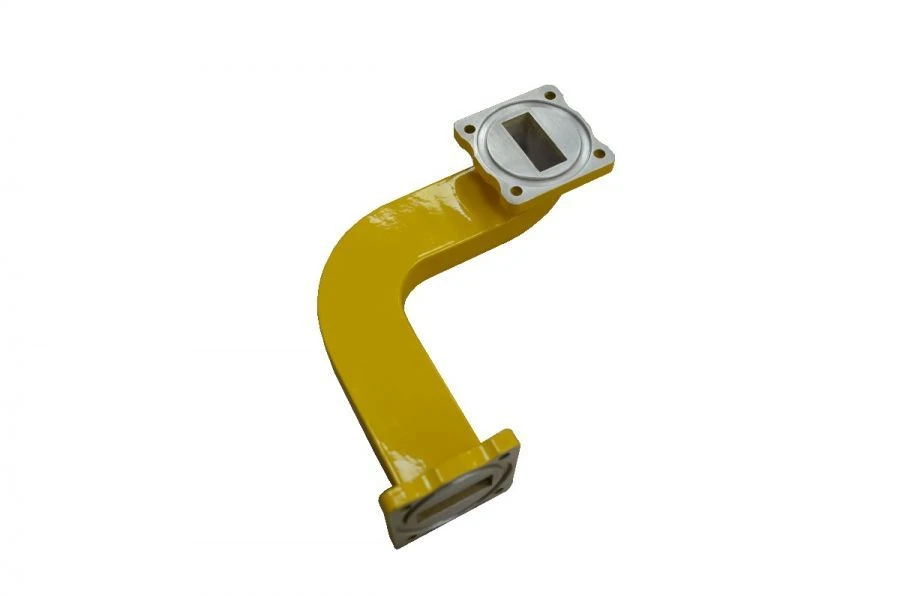

Waveguide bend

Waveguides are conductors of ultra-high frequency energy, which are widely used in aviation, radar, satellite and space communication systems, as well as in industries that require energy transmission through rotating joints.
Technical capabilities of the company allow to produce not only straight waveguides with different types of cross sections, but also flexible, waveguide switches, twists, tees (T-bridges), coaxial-waveguide transitions, attenuators, directional taps, power dividers, irradiators, corner transitions, polarisers and filters, matched loads, slotted phase shifters and rotating joints.
Cross sections of waveguide tubes 5,2x2,6; 7,2x3,4; 11x5,5; 13x6,5; 16x8; 19x9,5; 23,5x10; 28,5x12,6; 35x15; 40x20; 48x24; 58x25; 72x34; 90x45; 160x80; 180x85 mm.
Used rolled products: copper, brass L96, aluminium AD-00.
Argon-arc welding on aluminium
Soldering with silver-containing solders or their substitutes silver-free high-temperature solders....
